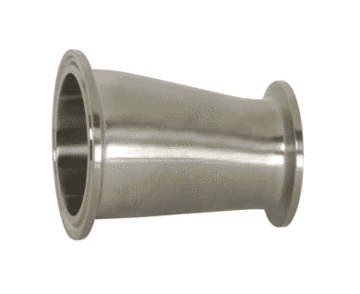

B3214MP-R300100 Dixon Valve 316L Stainless Steel Sanitary Clamp Eccentric Reducer - 3" x 1" Tube OD

B3214MP-R300100 Dixon Valve 316L Stainless Steel Sanitary Clamp Eccentric Reducer - 3" x 1" Tube OD

Save $101.91 Save $101.91
$254.78
$254.78 - $254.78
$254.78
$152.87
$152.87 - $152.87
$152.87

Dixon Sanitary Fittings Sanitary Clamp Reducer - Clamp Eccentric Reducer - 316L Stainless Steel
Specifications for Variant SKU: B3214MP-R300100 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Sanitary Clamp End, 1in Sanitary Clamp End
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C WT1 WT2
B3214MP-R7550 3/4" x 1/2" 2.00" 0.75" 0.50" 0.07" 0.07" 0.1050
B3214MP-R10050 1" x 1/2" 3.00" 1.00" 0.50" 0.07" 0.07" 0.2700
B3214MP-R10075 1" x 3/4" 2.00" 1.00" 0.75" 0.07" 0.07" 0.2300
B3214MP-R15050 1-1/2" x 1/2" 5.00" 1.50" 0.50" 0.07" 0.07" 0.3550
B3214MP-R15075 1-1/2" x 3/4" 4.00" 1.50" 0.75" 0.07" 0.07" 0.3150
B3214MP-R150100 1-1/2" x 1" 3.00" 1.50" 1.00" 0.07" 0.07" 0.4175
B3214MP-R20050 2" x 1/2" 7.00" 2.00" 0.50" 0.07" 0.07" 0.6500
B3214MP-R20075 2" x 3/4" 6.00" 2.00" 0.75" 0.07" 0.07" 0.5800
B3214MP-R200100 2" x 1" 5.00" 2.00" 1.00" 0.07" 0.07" 0.6450
B3214MP-R200150 2" x 1-1/2" 3.00" 2.00" 1.50" 0.07" 0.07" 0.4100
B3214MP-R250150 2-1/2" x 1-1/2" 5.00" 2.50" 1.50" 0.07" 0.07" 0.7650
B3214MP-R250200 2-1/2" x 2" 3.00" 2.50" 2.00" 0.07" 0.07" 0.5400
B3214MP-R300100 3" x 1" 9.00" 3.00" 1.00" 0.07" 0.07" 1.0000
B3214MP-R300150 3" x 1-1/2" 7.00" 3.00" 1.50" 0.07" 0.07" 1.1250
B3214MP-R300200 3" x 2" 5.00" 3.00" 2.00" 0.07" 0.07" 1.4300
B3214MP-R300250 3" x 2-1/2" 3.00" 3.00" 2.50" 0.07" 0.07" 0.6550
B3214MP-R400150 4" x 1-1/2" 11.13" 4.00" 1.50" 0.08" 0.07" 2.2200
B3214MP-R400200 4" x 2" 9.13" 4.00" 2.00" 0.08" 0.07" 2.2100
B3214MP-R400250 4" x 2-1/2" 7.13" 4.00" 2.50" 0.08" 0.07" 1.8800
B3214MP-R400300 4" x 3" 5.13" 4.00" 3.00" 0.08" 0.07" 1.7350
B3214MP-R600300 6" x 3" 6.88" 6.00" 3.00" 0.11" 0.07" 3.3400
B3214MP-R600400 6" x 4" 7.00" 6.00" 4.00" 0.11" 0.08" 3.9800
B3214MP-R800400 8" x 4" 7.50" 8.00" 4.00" 0.11" 0.08" 5.4350
B3214MP-R800600 8" x 6" 7.75" 8.00" 6.00" 0.11" 0.11" 10.0000
