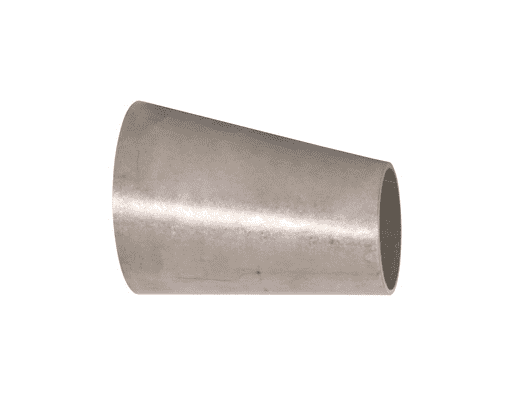

B32W-G800400U Dixon Valve 304 Stainless Steel Sanitary Unpolished Eccentric Weld Reducer - 8" x 4" Tube OD

B32W-G800400U Dixon Valve 304 Stainless Steel Sanitary Unpolished Eccentric Weld Reducer - 8" x 4" Tube OD

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings Sanitary Unpolished Weld Reducers - Unpolished Eccentric Weld Reducers - 304 Stainless Steel
Specifications for Variant SKU: B32W-G800400U Dixon
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

Nominal Wall Weight
A B C D E
B32W-G150100U 1-1/2" x 1" 2.00" 1.00" 1.50" 0.07" 0.07" 0.065" 0.1400
B32W-G200100U 2" x 1" 4.00" 1.00" 2.00" 0.07" 0.07" 0.065" 0.4200
B32W-G200150U 2" x 1-1/2" 2.00" 1.50" 2.00" 0.07" 0.07" 0.065" 0.2250
B32W-G250100U 2-1/2" x 1" - - - - - - -
B32W-G250150U 2-1/2" x 1-1/2" 4.00" 1.50" 2.50" 0.07" 0.07" 0.065" 0.5000
B32W-G250200U 2-1/2" x 2" 2.00" 2.00" 2.50" 0.07" 0.07" 0.065" 0.2930
B32W-G300100U 3" x 1" 8.00" 1.00" 3.00" 0.07" 0.07" 0.065" 2.0000
B32W-G300150U 3" x 1-1/2" 6.00" 1.50" 3.00" 0.07" 0.07" 0.065" 0.3450
B32W-G300200U 3" x 2" 4.00" 2.00" 3.00" 0.07" 0.07" 0.065" 0.6150
B32W-G300250U 3" x 2-1/2" 2.00" 2.50" 3.00" 0.07" 0.07" 0.065" 0.9150
B32W-G400150U 4" x 1-1/2" 10.00" 1.50" 4.00" 0.08" 0.07" 0.083" 3.0000
B32W-G400200U 4" x 2" 8.00" 2.00" 4.00" 0.08" 0.07" 0.083" 1.7650
B32W-G400250U 4" x 2-1/2" 6.00" 2.50" 4.00" 0.08" 0.07" 0.083" 1.4350
B32W-G400300U 4" x 3" 4.00" 3.00" 4.00" 0.08" 0.07" 0.083" 0.9805
B32W-G600400U 6" x 4" 5.50" 4.00" 6.00" 0.11" 0.08" 0.109" 2.6335
B32W-G800400U 8" x 4" 6.00" 4.00" 8.00" 0.11" 0.08" 0.109" 7.0000
B32W-G800600U 8" x 6" 6.00" 6.00" 8.00" 0.11" 0.11" 0.109" 4.1350
B32W-G1000800U 10" x 8" - - - - - - 12.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
