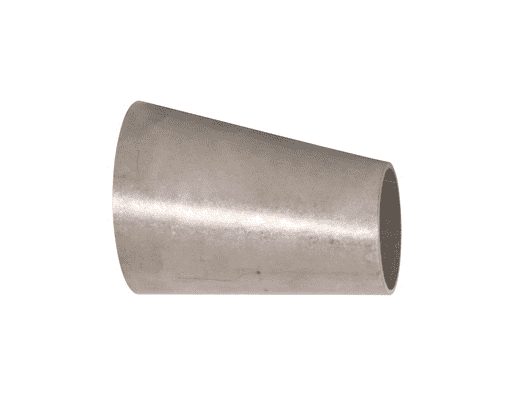

B32W-R600400U Dixon Valve 316L Stainless Steel Sanitary Unpolished Eccentric Weld Reducer - 6" x 4" Tube OD

B32W-R600400U Dixon Valve 316L Stainless Steel Sanitary Unpolished Eccentric Weld Reducer - 6" x 4" Tube OD

Save $103.89 Save $103.89
$259.73
$259.73 - $259.73
$259.73
$155.84
$155.84 - $155.84
$155.84

Dixon Sanitary Fittings Sanitary Unpolished Eccentric Weld Reducers - 316L Stainless Steel
Specifications for Variant SKU: B32W-R600400U Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

 Nominal Wall Weight (Lbs.)
A B C D E
B32W-R7550U 3/4" x 1/2" 1.00" 0.50" 0.75" 0.07" 0.07" 0.065" 0.0350
B32W-R10050U 1" x 1/2" 2.00" 0.50" 1.00" 0.07" 0.07" 0.065" 0.0600
B32W-R10075U 1" x 3/4" 1.00" 0.75" 1.00" 0.07" 0.07" 0.065" 0.0475
B32W-R15050U 1-1/2" x 1/2" 4.00" 0.50" 1.50" 0.07" 0.07" 0.065" 0.2200
B32W-R15075U 1-1/2" x 3/4" 3.00" 0.75" 1.50" 0.07" 0.07" 0.065" 0.1850
B32W-R150100U 1-1/2" x 1" 2.00" 1.00" 1.50" 0.07" 0.07" 0.065" 0.1720
B32W-R20075U 2" x 3/4" 5.00" 0.75" 2.00" 0.07" 0.07" 0.065" 0.3300
B32W-R200100U 2" x 1" 4.00" 1.00" 2.00" 0.07" 0.07" 0.065" 0.3705
B32W-R200150U 2" x 1-1/2" 2.00" 1.50" 2.00" 0.07" 0.07" 0.065" 0.2250
B32W-R250150U 2-1/2" x 1-1/2" 4.00" 1.50" 2.50" 0.07" 0.07" - 0.5225
B32W-R250200U 2-1/2" x 2" 2.00" 2.00" 2.50" 0.07" 0.07" 0.065" 0.2650
B32W-R300100U 3" x 1" 8.00" 1.00" 3.00" 0.07" 0.07" - 4.0000
B32W-R300150U 3" x 1-1/2" 6.00" 1.50" 3.00" 0.07" 0.07" 0.065" 0.8800
B32W-R300200U 3" x 2" 4.00" 2.00" 3.00" 0.07" 0.07" 0.065" 0.7150
B32W-R300250U 3" x 2-1/2" 2.00" 2.50" 3.00" 0.07" 0.07" 0.065" 0.3760
B32W-R400200U 4" x 2" 8.00" 2.00" 4.00" 0.08" 0.07" 0.083" 1.8000
B32W-R400250U 4" x 2-1/2" 6.00" 2.50" 4.00" 0.08" 0.07" - 1.4600
B32W-R400300U 4" x 3" 4.00" 3.00" 4.00" 0.08" 0.07" 0.083" 1.0430
B32W-R600400U 6" x 4" 5.50" 4.00" 6.00" 0.11" 0.08" 0.109" 2.6750
B32W-R800600U 8" x 6" 6.00" 6.00" 8.00" 0.11" 0.11" 0.109" 4.7550
