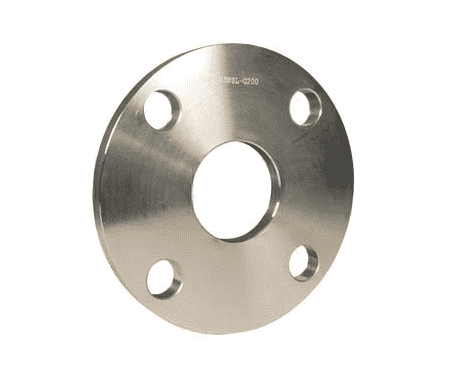

B38SL-G400 Dixon 304 Stainless Steel Sanitary Unpolished Slip-On 150# Flange - 4" Tube OD

B38SL-G400 Dixon Valve 304 Stainless Steel Sanitary Unpolished Slip-On 150# Flange - 4" Tube OD

Save $68.75 Save $68.75
$171.87
$171.87 - $171.87
$171.87
$103.12
$103.12 - $103.12
$103.12

Dixon Sanitary Fittings Sanitary Unpolished Slip-On 150# Flange - 304 Stainless Steel
Specifications for Variant SKU: B38SL-G400 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in 150# Flange, 4in 150# Flange, Some Ends Match
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions
Weight (Lbs.)
A B C D E # of Bolt Holes
B38SL-G50 1/2" - - - - - - -
B38SL-G75 3/4" - - - - - - -
B38SL-G100 1" 1.06" 3.13" 0.63" 0.38" 4.25" 4 1.3050
B38SL-G150 1-1/2" 1.56" 3.88" 0.63" 0.38" 5.00" 4 1.7700
B38SL-G200 2" 2.06" 4.75" 0.75" 0.44" 6.00" 4 2.9230
B38SL-G250 2-1/2" 2.56" 5.50" 0.75" 0.44" 7.00" 4 4.4800
B38SL-G300 3" 3.06" 6.00" 0.75" 0.50" 7.50" 4 4.9900
B38SL-G400 4" 4.06" 7.50" 0.75" 0.56" 9.00" 8 7.5500
B38SL-G600 6" 6.06" 9.50" 0.88" 0.56" 11.00" 8 9.8500
B38SL-G800 8" 8.06" 11.75" 0.88" 0.56" 13.50" 8 14.2500
B38SL-G1200 12" - - - - - - 14.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
