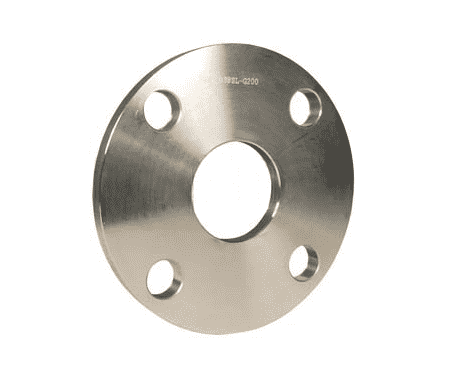

B38SL-R100 Dixon 316L Stainless Steel Sanitary Unpolished Slip-On 150# Flange - 1" Tube OD

B38SL-R100 Dixon Valve 316L Stainless Steel Sanitary Unpolished Slip-On 150# Flange - 1" Tube OD

Save $30.47 Save $30.47
$76.18
$76.18 - $76.18
$76.18
$45.71
$45.71 - $45.71
$45.71

Dixon Sanitary Fittings Sanitary Unpolished Slip-On 150# Flange - 304 Stainless Steel
Specifications for Variant SKU: B38SL-R100 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in 150# Flange, 1in 150# Flange, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions
Weight (Lbs.)
A B C D E # of Bolt Holes
B38SL-R75 3/4" - - - - - - -
B38SL-R100 1" 1.06" 3.13" 0.63" 0.38" 4.25" 4 1.3000
B38SL-R150 1-1/2" 1.56" 3.88" 0.63" 0.38" 5.00" 4 1.7950
B38SL-R200 2" 2.06" 4.75" 0.75" 0.44" 6.00" 4 2.8900
B38SL-R250 2-1/2" 2.56" 5.50" 0.75" 0.44" 7.00" 4 4.7950
B38SL-R300 3" 3.06" 6.00" 0.75" 0.50" 7.50" 4 5.0400
B38SL-R400 4" 4.06" 7.50" 0.75" 0.56" 9.00" 8 6.9000
B38SL-R600 6" 6.06" 9.50" 0.88" 0.56" 11.00" 8 9.9300
B38SL-R800 8" 8.06" 11.75" 0.88" 0.56" 13.50" 8 12.6000
B38SL-R1000 10" 10.06" 14.25" 1.00" 0.69" 16.00" 12 12.0000
