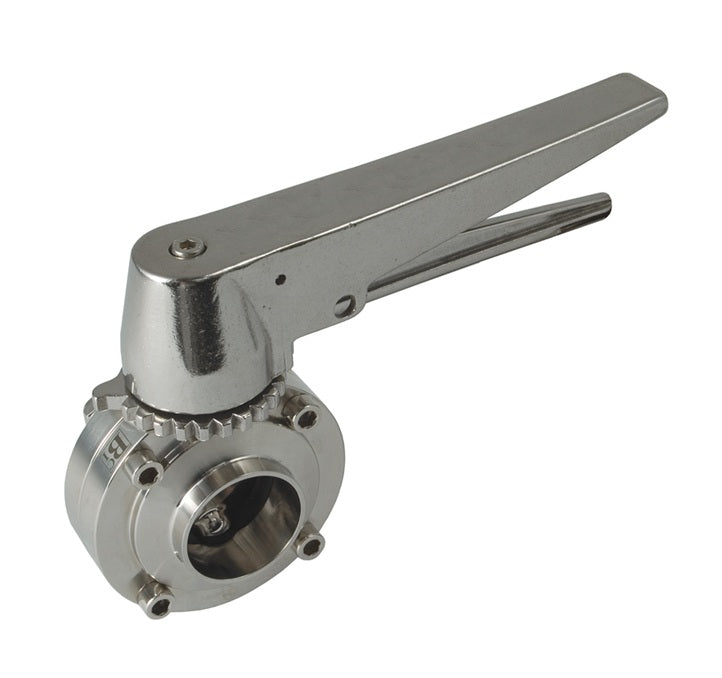

B5101E075BB-C Dixon Valve 3/4" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Trigger Handle - EPDM Seats

B5101E075BB-C Dixon Valve 3/4" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Trigger Handle - EPDM Seats

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Weld End Butterfly Valve with Trigger Handle - [C] | 316L Stainless Steel with EPDM Seats
Specifications for Variant SKU: B5101E075BB-C Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • All wetted surfaces are sanitary finished to < 32Ra
  • The stainless steel trigger handle offers twelve positions which make it easy to understand how to actuate the valve.
  • Lockout / tagout handle.
  • Low resistance to flow.
  • Bi-directions flow.
  • Gentle to media.
  • Suitable for low and medium viscosity fluids.
  • Can be serviced in the field.
  • Self-draining.
  • Optional wing nut kit is available for easy assembly and disassembly.
  • 100% hydraulic tested / 100% inspected.
Materials:
  • Body and Disc: 316L Stainless Steel
  • Seat: EPDM
Specifications:
  • Vacuum Rating: 0.4 inches Hg at 68°F (20°C)
  • Operating Temperature Range: 15°F to 200°F (-9°C to 93°C)
Notes:
  • Not for use with bolted clamps.
  • Handle is not assembled when shipped.
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C.
Part Number Size Dimensions

 Weight (Lbs.)
A B C D E F G
B5101E050BB-C 1/2" 6.6" 3.0" 1.7" 0.9" 1.9" 0.37" 3.1" 2.5200
B5101E075BB-C 3/4" 6.6" 3.0" 1.7" 0.9" 1.9" 0.62" 3.1" 2.5400
B5101E100BB-C 1" 6.6" 3.0" 1.7" 0.9" 1.9" 0.9" 3.1" 3.5400
B5101E250BB-C 2-1/2" 6.6" 3.7" 1.7" 0.9" 2.1" 2.4" 4.6" 5.0000
B5101E300BB-C 3" 6.6" 3.9" 1.7" 1.2" 2.5" 2.9" 5.2" 7.0300
