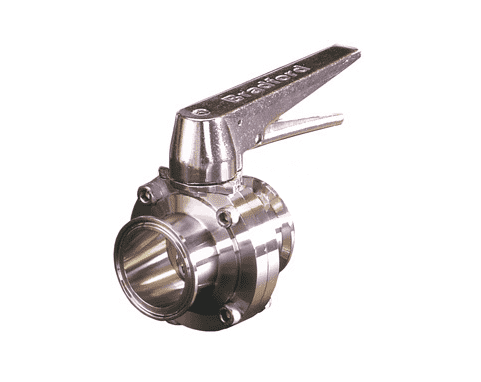

B5101E250CC-C Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Trigger Handle and EPDM Seats

$0.00

Dixon Sanitary Valves - Clamp End Butterfly Valve with Trigger Handle - [C] - 316L Stainless Steel with EPDM Seats

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B5101E250CC-C Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Features:
  • The stainless steel trigger handle offers twelve positions which make it easy to understand how to actuate the valve.
  • Lockout / tagout handle.
  • 100% hydraulic tested / 100% inspected.
  • All wetted surfaces are sanitary finished to < 32Ra.
  • Field serviceable (no special tools required).
  • Vacuum rating: 0.4 inches Hg at 68 deg. F.
  • Temperature range: 15 deg. F to 200 deg. F.
  • Clamp style is standard.
Dimensions:
Part Number Size Dimensions Break Torque (in-lbs.) PSI @ 68 deg. F Weight (Lbs.)
A B C D E F G
B5101E050CC-C 1/2" 6.6" 3.0" 1.7" 0.9" 3.5" .37" 3.1" 75 140 1.5400
B5101E075CC-C 3/4" 6.6" 3.0" 1.7" 0.9" 3.5" .62" 3.1" 75 140 1.5400
B5101E100CC-C 1" 6.6" 3.0" 1.7" 0.9" 3.5" 0.9" 3.1" 75 140 4.5900
B5101E150CC-C 1-1/2" 6.6" 3.0" 1.7" 0.9" 3.5" 1.4" 3.1" 130 140 4.1900
B5101E200CC-C 2" 6.6" 3.5" 1.7" 0.9" 3.8" 1.9" 3.9" 165 140 5.3600
B5101E250CC-C 2-1/2" 6.6" 3.7" 1.7" 0.9" 3.8" 2.4" 4.6" 210 110 6.4100
B5101E300CC-C 3" 6.6" 3.9" 1.7" 1.2" 4.1" 2.9" 5.2" 350 110 8.8900
B5101E400CC-C 4" 6.6" 4.8" 1.7" 1.2" 4.8" 3.8" 6.7" 540 85 14.4800
