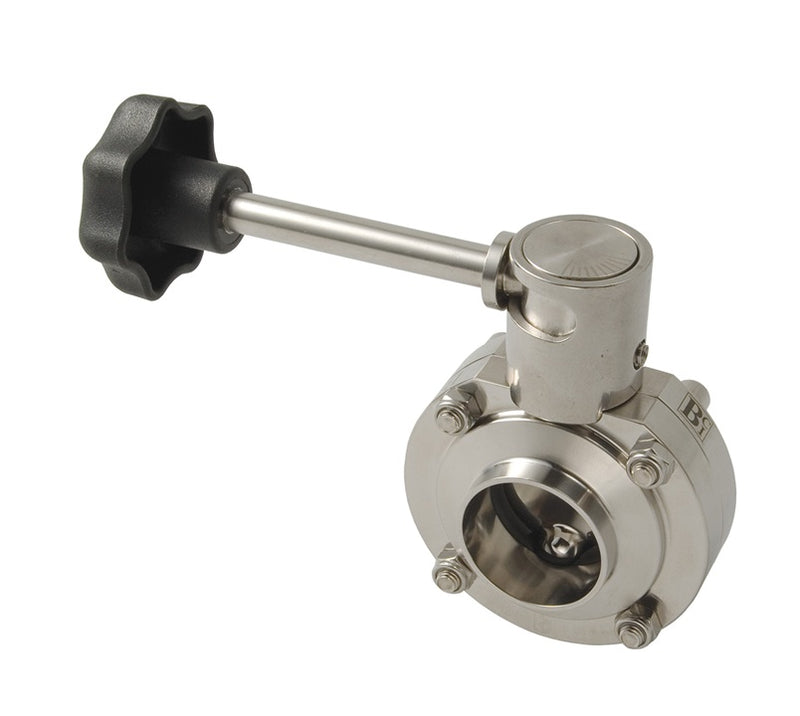

B5101S050BB-B Dixon Valve 1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Infinite Handle - Silicone Seats

B5101S050BB-B Dixon Valve 1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Infinite Handle - Silicone Seats

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Weld End Butterfly Valves with Infinite Position Handle - [B] | 316L Stainless Steel | Silicone Seats

All wetted surfaces are sanitary finished to < 32Ra.

Suitable for low and medium viscosity fluids.
Specifications for Variant SKU: B5101S050BB-B Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Features:
  • All wetted surfaces are sanitary finished to < 32Ra
  • The infinite handle has incremental marks on the top which can be used when needing a throttling valve.
  • Low resistance to flow.
  • Bi-directions flow.
  • Gentle to media.
  • Suitable for low and medium viscosity fluids.
  • Can be serviced in the field.
  • Self-draining.
  • Optional wing nut kit is available for easy assembly and disassembly.
  • 100% hydraulic tested / 100% inspected.
Materials:
  • Body and Disc: 316L Stainless Steel
  • Seat: Silicone
Specifications:
  • Vacuum Rating: 0.4 inches Hg at 68°F (20°C)
  • Operating Temperature Range: 15°F to 200°F (-9°C to 93°C)
Notes:
  • Not for use with bolted clamps.
  • Handle is not assembled when shipped.
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C.
Part Number Size Dimensions

 Weight (Lbs.)
A B C D E F G
B5101S050BB-B 1/2" 4.3" 2.6" 1.3" 0.9" 1.9" 0.37" 3.1" 2.7300
B5101S075BB-B 3/4" 4.3" 2.6" 1.3" 0.9" 1.9" 0.62" 3.1" 2.7250
B5101S150BB-B 1-1/2" 4.3" 2.6" 1.3" 0.9" 1.9" 1.37" 3.1" 2.2400
B5101S250BB-B 2-1/2" 4.3" 3.3" 1.3" 0.9" 2.1" 2.37" 4.6" 4.3000
B5101S300BB-B 3" 6.4" 3.6" 1.3" 1.2" 2.5" 2.87" 5.2" 6.7400
B5101S400BB-B 4" 6.4" 4.4" 1.3" 1.2" 3.1" 3.83" 6.7" -
