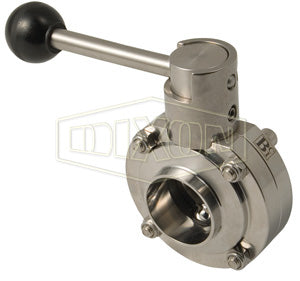

B5101S250BB-A Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Pull Handle - Silicone Seats

B5101S250BB-A Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Pull Handle - Silicone Seats

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Weld End Butterfly Valve with Pull Handle - [A] - 316L Stainless Steel with Silicone Seats
Specifications for Variant SKU: B5101S250BB-A Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Features:
  • All wetted surfaces are sanitary finished to < 32Ra
  • Low resistance to flow.
  • Bi-directions flow.
  • Gentle to media.
  • Suitable for low and medium viscosity fluids.
  • Can be serviced in the field.
  • Self-draining.
  • Optional wing nut kit is available for easy assembly and disassembly.
  • 100% hydraulic tested / 100% inspected.
Materials:
  • Body and Disc: 316L Stainless Steel
  • Seat: Silicone
Specifications:
  • Vacuum Rating: 0.4 inches Hg at 68°F (20°C)
  • Operating Temperature Range: 15°F to 200°F (-9°C to 93°C)
Notes:
  • Not for use with bolted clamps.
  • Handle is not assembled when shipped.
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C.
Part Number Size Dimensions

 Weight (Lbs.)
A B C D E F G
B5101S050BB-A 1/2" 4.4" 2.6" 1.4" 0.9" 1.9" 0.37" 3.1" 2.6200
B5101S075BB-A 3/4" 4.4" 2.6" 1.4" 0.9" 1.9" 0.62" 3.1" 2.6150
B5101S150BB-A 1-1/2" 4.4" 2.6" 1.4" 0.9" 1.9" 1.37" 3.1" 2.1300
B5101S250BB-A 2-1/2" 4.4" 3.5" 1.4" 0.9" 2.1" 2.37" 4.6" 4.1900
B5101S300BB-A 3" 6.2" 3.8" 1.3" 1.2" 2.5" 2.87" 5.2" 6.6700
B5101S400BB-A 4" 6.2" 4.5" 1.3" 1.2" 3.1" 3.83" 6.7" 0.8000
