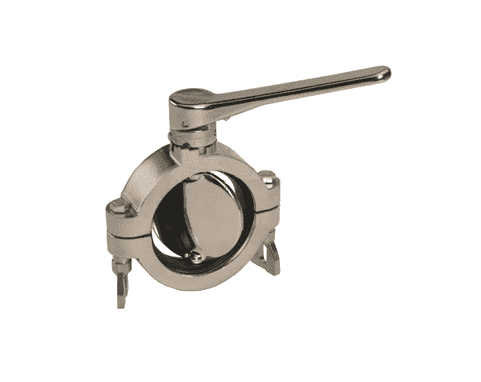

B5102E200-A Dixon 2" 316L Stainless Steel Sanitary Clamp Butterfly Valve with EPDM Seats

B5102E200-A Dixon Valve 2" 316L Stainless Steel Sanitary Clamp Butterfly Valve with EPDM Seats

Save $15.73 Save $15.73
$152.00
$152.00 - $152.00
$152.00
$136.27
$136.27 - $136.27
$136.27

Dixon Sanitary Valves
Clamp Butterfly Valves - 316L Stainless Steel with EPDM Seats
Specifications for Variant SKU: B5102E200-A Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Sanitary Clamp End, 2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • 100% tested / 100% inspected.
  • Field serviceable (no special tools required).
  • Minimal line pressure 0.4 inches Hg vacuum @ 68 deg. F.
  • 3 position reversible handle.
  • Can be modified for lockout/tagout.
  • Operating temperature 15 deg. F - 200 deg. F.
  • PTFE valve disc bushings decrease friction and increase cycle life.
  • The grooved clamp housing connects directly to the corresponding sanitary clamp size.
  • Valve is only 1-3/8" wide on all sizes.
  • Valve uses only 3/4" of line space.
  • The grooved clamp housing connects directly to any sanitary clamp style fitting.
  • Easy assembly requires a hex key for the handle and wing nuts to secure and seal the housing onto lines.
Part Number Size Dimensions Break Torque
(in-lbs.)		 PSI @
68 deg. F		 Assembly Torque:
(in-lbs.)		 Flow Coefficient:
(CV)		 Weight
(Lbs.)
A B C D E F
B5102E100-A 1" 5.6" 2.8" 1.3" 1.3" 3.6" 5.6" 125 140 36 23 2.4050
B5102E150-A 1-1/2" 5.6" 2.8" 1.3" 1.3" 3.6" 5.6" 185 140 36 80 2.4150
B5102E200-A 2" 5.6" 3" 1.3" 1.3" 4.1" 6.1" 200 120 21.6 230 2.8300
B5102E250-A 2-1/2" 5.6" 3.3" 1.3" 1.3" 4.6" 6.6" 260 120 21.6 264 3.1300
B5102E300-A 3" 5.6" 3.6" 1.3" 1.3" 5.3" 7.1" 350 100 28.8 372 3.7050
B5102E400-A 4" 5.6" 4.1" 1.3" 1.3" 6.4" 8.2" 495 70 43.2 800 4.8100
