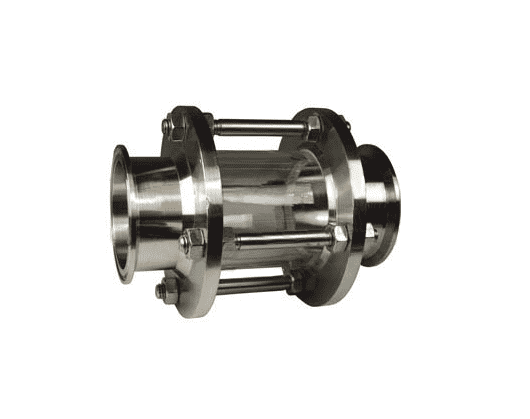

B54BMP-R200 Dixon 316L Stainless Steel Sanitary In-Line Sight Glass - 2" Tube OD

B54BMP-R200 Dixon Valve 316L Stainless Steel Sanitary In-Line Sight Glass - 2" Tube OD

Save $193.42 Save $193.42
$483.55
$483.55 - $483.55
$483.55
$290.13
$290.13 - $290.13
$290.13

Dixon Sanitary Sight Glasses - In-Line Sight Glasses - 316L Stainless Steel
Specifications for Variant SKU: B54BMP-R200 Dixon
Features:
  • Size range: 1" - 6" OD tube
  • 316L stainless steel.
  • Borosilicate glass.
  • White buna gaskets.
  • 32Ra sanitary finish, ID and OD.
Available Options:
  • Various end configurations are available: clamp, weld, bevel seat, John Perry, I-Line and Q-Line.
Part Number Tube OD Dimensions
Working Pressure Maximum Temperature Weight (Lbs.)
A B
B54BMP-R100 1" 5.625" 3.250" 145 PSI 200 deg. F 2.8450
B54BMP-R150 1-1/2" 5.625" 4.000" 145 PSI 200 deg. F 4.5500
B54BMP-R200 2" 5.625" 4.250" 145 PSI 200 deg. F 5.2400
B54BMP-R250 2-1/2" 6.125" 4.750" 120 PSI 200 deg. F 4.2750
B54BMP-R300 3" 7.250" 5.500" 120 PSI 200 deg. F 8.1850
B54BMP-R400 4" 7.375" 6.500" 95 PSI 200 deg. F 11.0800
B54BMP-R600 6" 7.625" 9.500" 80 PSI 200 deg. F 15.0000
