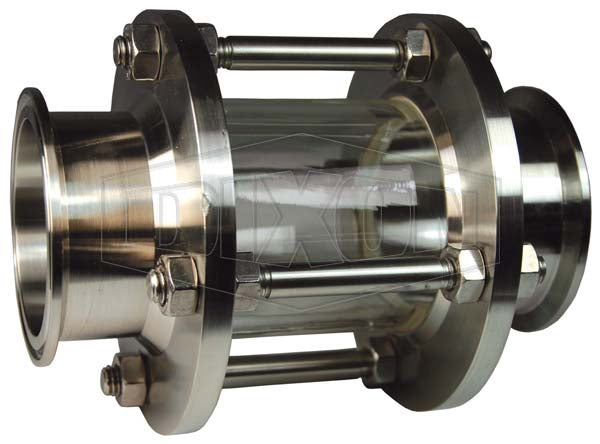

B54BMP-R300LX Dixon Valve 316 Stainless Steel Sanitary In-Line Sight Glass - Polycarbonate Glass - 3" Tube OD

B54BMP-R300LX Dixon Valve 316 Stainless Steel Sanitary In-Line Sight Glass - Polycarbonate Glass - 3" Tube OD

Save $45.79 Save $45.79
$412.08
$412.08 - $412.08
$412.08
$366.29
$366.29 - $366.29
$366.29

Dixon Sanitary Fittings Sanitary Sight Glass - In-Line Sight Glass - 316 Stainless Steel with Polycarbonate Glass
Specifications for Variant SKU: B54BMP-R300LX Dixon
Features:
  • Sight glass: Polycarbonate
  • Black Buna gaskets
  • 32Ra sanitary finish, ID and OD
  • Maximum Temperature: 200°F (93°C)
Part Number Tube OD Dimensions
 Working Pressure Weight (Lbs.)
A B C
B54BMP-R100LX 1" 5.6" 1.98" 3.25" 145 PSI 2.0000
B54BMP-R150LX 1-1/2" 5.6" 1.98" 4.00" 145 PSI 3.8000
B54BMP-R200LX 2" 5.6" 2.52" 4.25" 145 PSI 4.0000
B54BMP-R250LX 2-1/2" 6.1" 3.05" 4.75" 120 PSI 4.8000
B54BMP-R300LX 3" 7.3" 3.58" 5.50" 120 PSI -
B54BMP-R400LX 4" 7.4" 4.68" 6.50" 95 PSI 11.6000
B54BMP-R600LX 6" 7.6" 6.57" 8.5" 80 PSI 16.4000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
