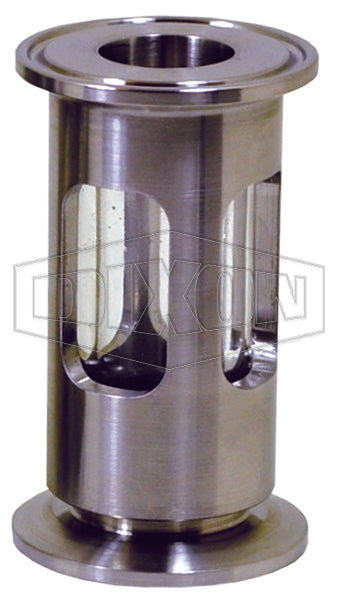

B54BMPLX-R400 Dixon Valve Sanitary Compact Sight Glass - 4" Tube OD - Polycarbonate Glass - 316 Stainless Steel

B54BMPLX-R400 Dixon Valve Sanitary Compact Sight Glass - 4" Tube OD - Polycarbonate Glass - 316 Stainless Steel

Save $289.55 Save $289.55
$723.88
$723.88 - $723.88
$723.88
$434.33
$434.33 - $434.33
$434.33

Dixon Sanitary Fittings Sanitary Compact Sight Glass - Polycarbonate Glass - 316 Stainless Steel

Used widely in the food, dairy and beverage sanitary processes to view products and fluids. This design is perfect for hoses.
Specifications for Variant SKU: B54BMPLX-R400 Dixon
Features:
  • Easier to clean than bolted styles
  • Less cost to repair than bolted styles
  • Clamp connections standard
  • Gasket: Buna
  • Max. Operating Pressure: 100 PSI (6.9 BAR)
  • Max. Temperature: 200°F (93°C)
Part Number Tube OD Dimensions
 Weight (Lbs.)
A B C D
B54BMPLX-R100 1" 3.3" 1.98" 1.54" 1.03" 1.1100
B54BMPLX-R150 1-1/2" 3.7" 1.98" 2.05" 1.57" 1.6170
B54BMPLX-R200 2" 3.9" 2.52" 2.56" 2.13" 2.2000
B54BMPLX-R300 3" 4.2" 3.58" 3.82" - 2.9700
B54BMPLX-R400 4" 4.4" 4.68" 4.94" - -
