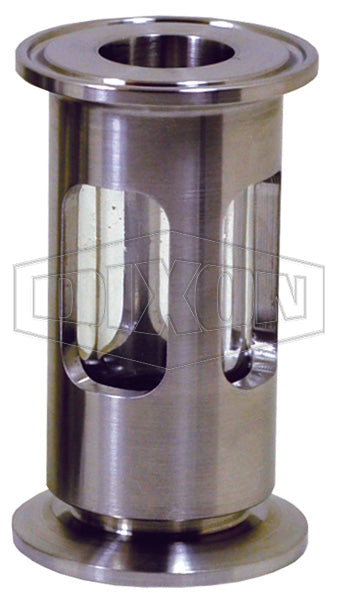

B54BMPS-R300 Dixon Valve Sanitary Compact Sight Glass - 3" Tube OD - Borosilicate Glass - 316L Stainless Steel

Name: B54BMPS-R300 Dixon Valve Sanitary Compact Sight Glass - 3" Tube OD - Borosilicate Glass - 316L Stainless Steel
Brand: Dixon
SKU: B54BMPS-R300 Dixon
Price: 355.85 USD
Availability: InStock

Save $237.23

$593.08

$593.08 - $593.08

$593.08

$355.85

$355.85 - $355.85

$355.85

Dixon Sanitary Fittings Sanitary Compact Sight Glass - Borosilicate Glass - 316L Stainless Steel

Used widely in the food, dairy and beverage sanitary processes to view products and fluids. This design is perfect for hoses.

Quantity

Specifications for Variant SKU: B54BMPS-R300 Dixon

Features:
Easier to clean than bolted styles Less cost to repair than bolted styles Clamp connections standard Gasket: Buna Max. Operating Pressure: 100 PSI (6.9 BAR) Max. Temperature: 200°F (93°C)

Part Number	Tube OD	Dimensions				Weight (Lbs.)
Part Number	Tube OD	A	B	C	D	Weight (Lbs.)
B54BMPS-R100	1"	3.3"	1.98"	1.54"	1.03"	1.2000
B54BMPS-R150	1-1/2"	3.7"	1.98"	2.05"	1.57"	1.9400
B54BMPS-R200	2"	3.9"	2.52"	2.56"	2.13"	1.4200
B54BMPS-R300	3"	4.2"	3.58"	3.82"	-	2.8150
B54BMPS-R400	4"	4.4"	4.68"	4.94"	-	5.2000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
