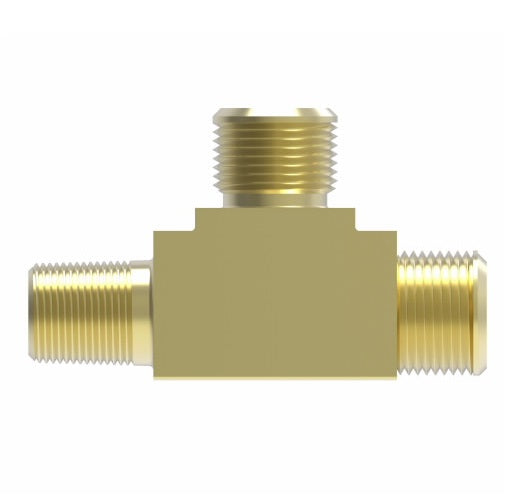

B71X3 by Danfoss | Compression Fitting | Male Pipe Run Tee (Body Only) | 3/16" Tube OD x 1/8" Male NPTF x 3/16" Tube OD | Brass

B71X3 by Danfoss | Compression Fitting | Male Pipe Run Tee (Body Only) | 3/16" Tube OD x 1/8" Male NPTF x 3/16" Tube OD | Brass

$5.18 - $5.18
$5.18
$5.18 - $5.18
$5.18

Aeroquip® by Danfoss
Compression Fitting - Male Pipe Run Tee
Compression End x Male NPTF x Compression End
Specifications for Variant SKU: B71X3 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/16in Tube Compression, 1/8in Male NPTF, 3/16in Tube Compression, Some Ends Match
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060424BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Brass
Body Only
Part Number 		Brass
Body Only
with Sealant
Part Number 		Tube O.D. Male Pipe Thread D D1 M N
71X3 B71X3 - 3/16" 1/8" 0.125" 0.219"* 0.64" 0.68"
71X4 B71X4 B71X4Z 1/4" 1/8" 0.188" 0.219"* 0.63" 0.75"
71X6 B71X6 - 3/8" 1/4" 0.312" 0.344"* 0.75" 0.94"

* Optional Counterbore
