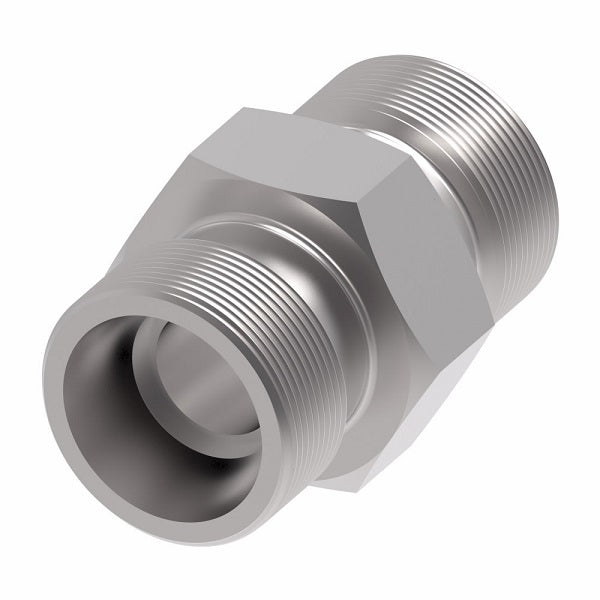

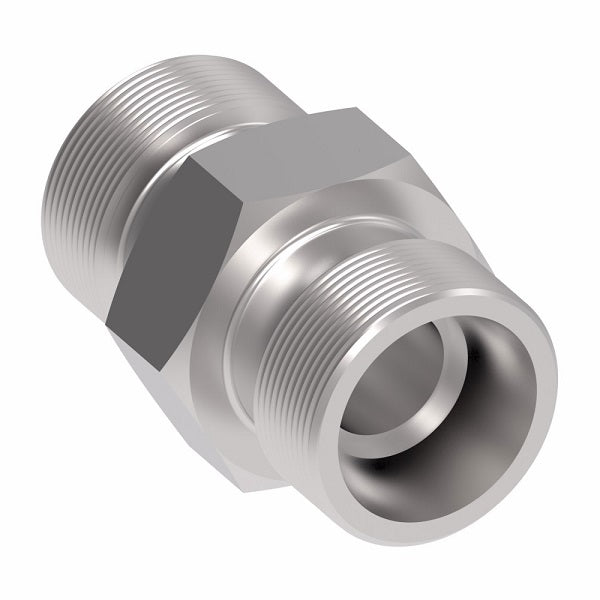

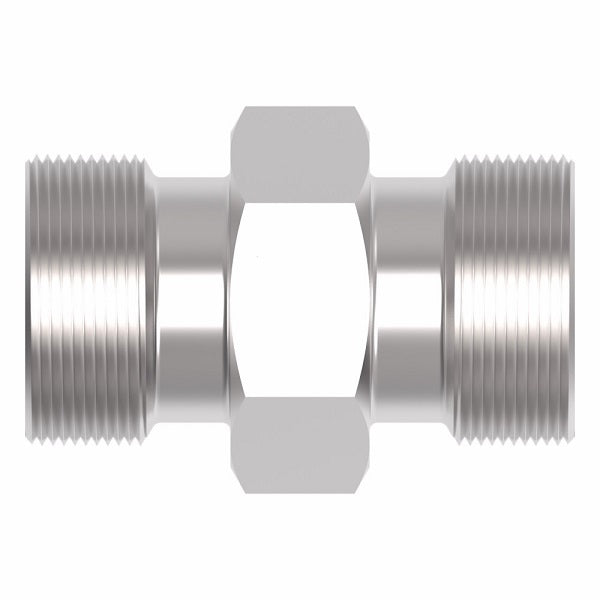

B7305X4 Ermeto by Danfoss | 7000 Series | Small Hex Union Adapter (Body Only) | 1/4" Tube x 1/4" Tube | Steel
B7305X4 Ermeto by Danfoss | 7000 Series | Small Hex Union Adapter (Body Only) | 1/4" Tube x 1/4" Tube | Steel
B7305X4 Ermeto by Danfoss | 7000 Series | Small Hex Union Adapter (Body Only) | 1/4" Tube x 1/4" Tube | Steel
B7305X4 Ermeto by Danfoss | 7000 Series | Small Hex Union Adapter (Body Only) | 1/4" Tube x 1/4" Tube | Steel

B7305X4 Ermeto by Danfoss | 7000 Series | Small Hex Union Adapter (Body Only) | 1/4" Tube x 1/4" Tube | Steel

$7.47 - $7.47
$7.47
$7.47 - $7.47
$7.47

Ermeto by Danfoss
Small Hex Union Adapter
Tube x Tube
Straight

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: B7305X4 Danfoss
Shape (Orientation): Straight
Material(s): Steel
Specifications:
  • Ref. SAE No. 080101
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Hex C D D1 L
7305X2 B7305X2 1/8" 7/16" 0.093" 0.093" 1.02"
7305X3 B7305X3 3/16" 7/16" 0.125" 0.125" 1.11"
7305X4 B7305X4 1/4" 1/2" 0.203" 0.203" 1.18"
7305X5 B7305X5 5/16" 9/16" 0.234" 0.234" 1.18"
7305X6 B7305X6 3/8" 5/8" 0.281" 0.281" 1.24"
7305X6X4 B7305X6X4 3/8" 5/8" 0.281" 0.203" 1.22"
7305X8 B7305X8 1/2" 13/16" 0.422" 0.422" 1.42"
7305X8X6 B7305X8X6 1/2" 13/16" 0.422" 0.281" 1.33"
7305X10 B7305X10 5/8" 15/16" 0.500" 0.500" 1.61"
7305X12 B7305X12 3/4" 1-1/8" 0.656" 0.656" 1.81"
7305X14 B7305X14 7/8" 1-1/4" 0.718" 0.718" 1.81"
7305X16 B7305X16 1" 1-3/8" 0.875" 0.875" 1.81"
7305X20 B7305X20 1-1/4" 1-11/16" 1.093" 1.093" 1.89"
7305X24 B7305X24 1-1/2" 2" 1.344 1.344" 1.96"
