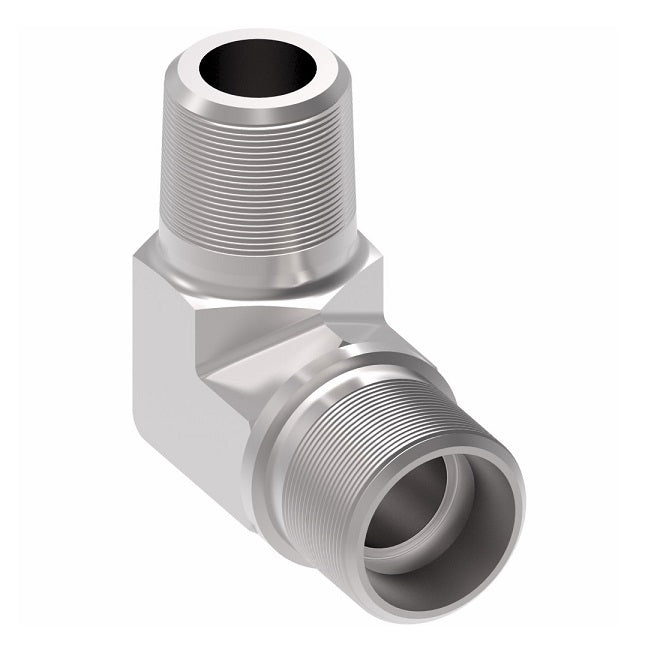

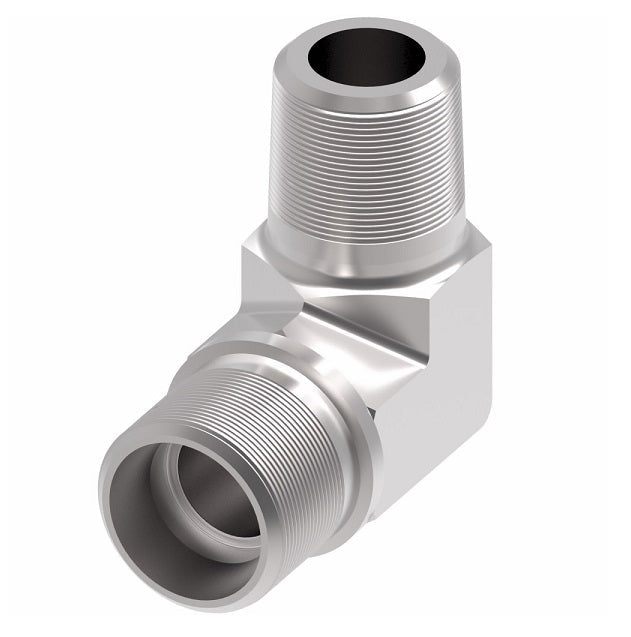

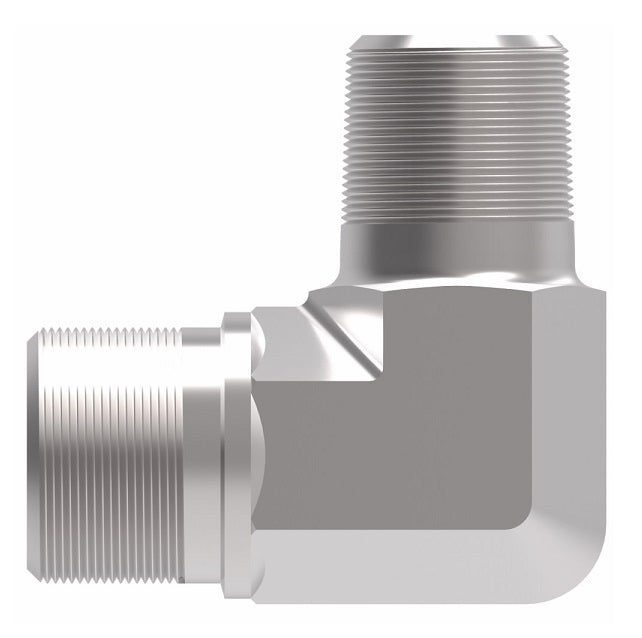

B7405X6X6 Ermeto by Danfoss | 7000 Series | Male Pipe/Tube 90° Elbow Connector (Body Only) | 3/8" Male NPTF x 3/8" Tube OD | Steel
B7405X6X6 Ermeto by Danfoss | 7000 Series | Male Pipe/Tube 90° Elbow Connector (Body Only) | 3/8" Male NPTF x 3/8" Tube OD | Steel
B7405X6X6 Ermeto by Danfoss | 7000 Series | Male Pipe/Tube 90° Elbow Connector (Body Only) | 3/8" Male NPTF x 3/8" Tube OD | Steel
B7405X6X6 Ermeto by Danfoss | 7000 Series | Male Pipe/Tube 90° Elbow Connector (Body Only) | 3/8" Male NPTF x 3/8" Tube OD | Steel

B7405X6X6 Ermeto by Danfoss | 7000 Series | Male Pipe/Tube 90° Elbow Connector (Body Only) | 3/8" Male NPTF x 3/8" Tube OD | Steel

$16.39 - $16.39
$16.39
$16.39 - $16.39
$16.39

Ermeto by Danfoss
Male Pipe/Tube Connector
Male NPTF x Tube
90° Elbow

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: B7405X6X6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male NPTF, 3/8in Tube Compression
Material(s): Steel
Specifications:
  • Ref. SAE No. 080202
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Male Pipe Thread D D1 M N Across
Flats
7405X2 B7405X2 1/8" 1/8" 0.093" 0.188" 0.77" 0.72" 7/16"
7405X3 B7405X3 3/16" 1/8" 0.125" 0.188" 0.83" 0.72" 7/16"
7405X4 B7405X4 1/4" 1/8" 0.203" 0.188" 0.89" 0.78" 7/16"
7405X4X4 B7405X4X4 1/4" 1/4" 0.203" 0.281" 1.03" 1.09" 9/16"
7405X5 B7405X5 5/16" 1/8" 0.234" 0.188" 0.95" 0.81" 1/2"
7405X5X4 B7405X5X4 5/16" 1/4" 0.234" 0.281" 1.03" 1.09" 9/16"
7405X6 B7405X6 3/8" 1/4" 0.281" 0.281" 1.05" 1.09" 9/16"
7405X6X2 B7405X6X2 3/8" 1/8" 0.281" 0.188" 1.05" 0.90" 9/16"
7405X6X6 B7405X6X6 3/8" 3/8" 0.281" 0.406" 1.16" 1.22" 3/4"
7405X6X8 B7405X6X8 3/8" 1/2" 0.281" 0.531" 1.24" 1.47" 7/8"
7405X8 B7405X8 1/2" 3/8" 0.422" 0.406" 1.25" 1.22" 3/4"
7405X8X4 B7405X8X4 1/2" 1/4" 0.422" 0.281" 1.25" 1.22" 3/4"
7405X8X8 B7405X8X8 1/2" 1/2" 0.422" 0.531" 1.35" 1.47" 7/8"
7405X10 B7405X10 5/8" 1/2" 0.500" 0.531" 1.42" 1.47" 7/8"
7405X10X6 B7405X10X6 5/8" 3/8" 0.500" 0.406" 1.42" 1.28" 7/8"
7405X12 B7405X12 3/4" 3/4" 0.656" 0.719" 1.58" 1.59" 1-1/16"
7405X12X8 B7405X12X8 3/4" 1/2" 0.656" 0.531" 1.58" 1.59" 1-1/16"
7405X14 B7405X14 7/8" 3/4" 0.718" 0.719" 1.62" 1.69" 1-5/16"
7405X16 B7405X16 1" 1" 0.875" 0.938" 1.73" 1.97" 1-5/16"
7405X16X12 B7405X16X12 1" 3/4" 0.875" 0.719" 1.73" 1.78" 1-5/16"
7405X20 B7405X20 1-1/4" 1-1/4" 1.093" 1.250" 1.89" 2.38" 1-5/8"
7405X24 B7405x24 1-1/2" 1-1/2" 1.344" 1.500" 2.02" 2.64" 1-7/8"
