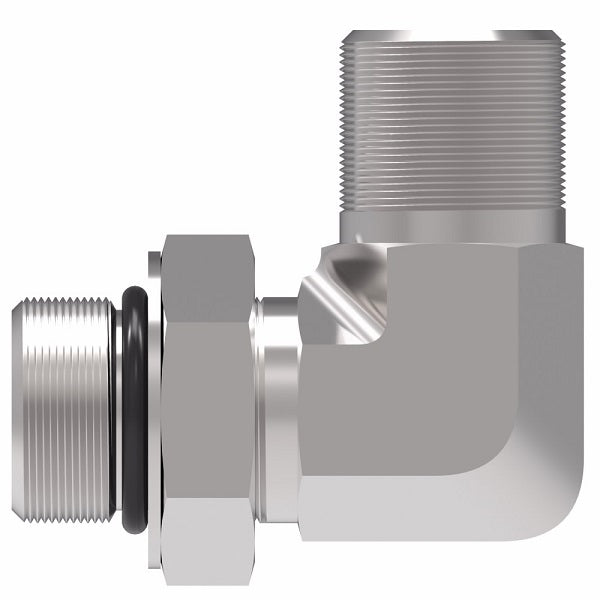

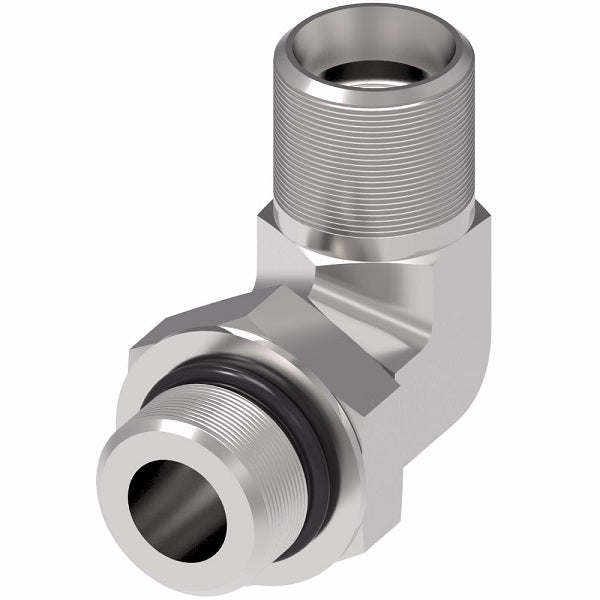

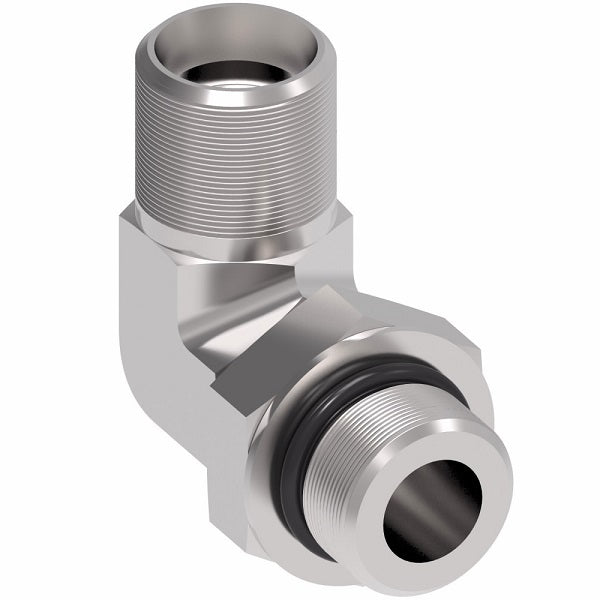

B7515X20 Ermeto by Danfoss | 7000 Series | Straight Thread ORB/Tube 90° Elbow (Body Only) | 1-1/4" Male O-Ring Boss x 1-1/4" Tube OD | Steel
B7515X20 Ermeto by Danfoss | 7000 Series | Straight Thread ORB/Tube 90° Elbow (Body Only) | 1-1/4" Male O-Ring Boss x 1-1/4" Tube OD | Steel
B7515X20 Ermeto by Danfoss | 7000 Series | Straight Thread ORB/Tube 90° Elbow (Body Only) | 1-1/4" Male O-Ring Boss x 1-1/4" Tube OD | Steel
B7515X20 Ermeto by Danfoss | 7000 Series | Straight Thread ORB/Tube 90° Elbow (Body Only) | 1-1/4" Male O-Ring Boss x 1-1/4" Tube OD | Steel

B7515X20 Ermeto by Danfoss | 7000 Series | Straight Thread ORB/Tube 90° Elbow (Body Only) | 1-1/4" Male O-Ring Boss x 1-1/4" Tube OD | Steel

$176.68 - $176.68
$176.68
$176.68 - $176.68
$176.68

Ermeto by Danfoss
Straight Thread ORB/Tube
Male O-Ring Boss x Tube
90° Elbow

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: B7515X20 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Male O-Ring Boss, 1-1/4in Tube Compression
Material(s): Steel
Specifications:
  • Ref. SAE No. 080220
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Ony
Part Number 		Tube O.D. Port Size D M N Across
Flats
7515X4 B7515X4 1/4" 1/4" 0.203" 0.89" 1.03" 7/16"
7515X6 B7515X6 3/8" 3/8" 0.281" 1.05" 1.25" 9/16"
7515X8 B7515X8 1/2" 1/2" 0.422" 1.25" 1.45" 3/4"
7515X10 B7515X10 5/8" 5/8" 0.500" 1.42" 1.70" 7/8"
7515X12 B7515X12 3/4" 3/4" 0.656" 1.58" 1.94" 1-1/16"
7515X20 B7515X20 1-1/4" 1-1/4" 1.093" 1.89" 2.25" 1-5/8"
