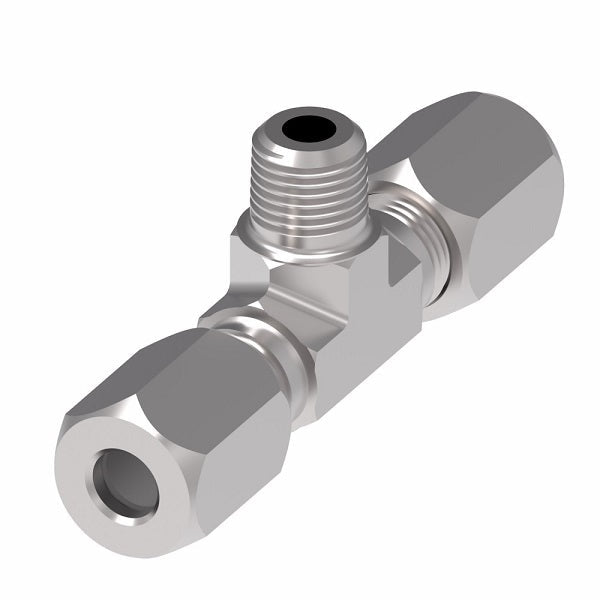

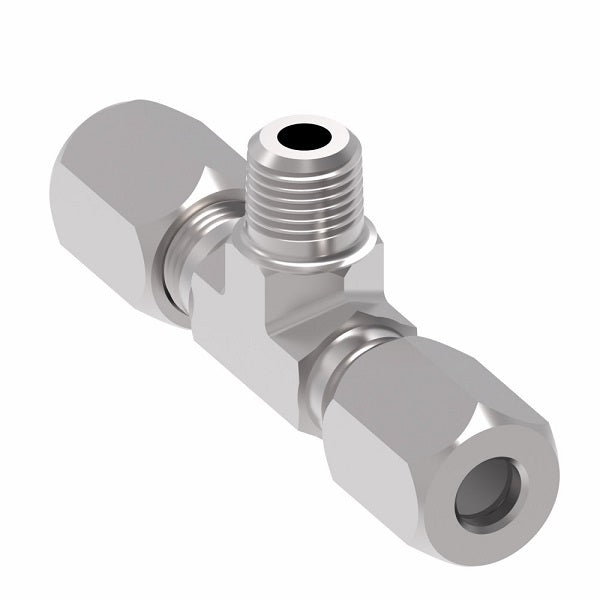

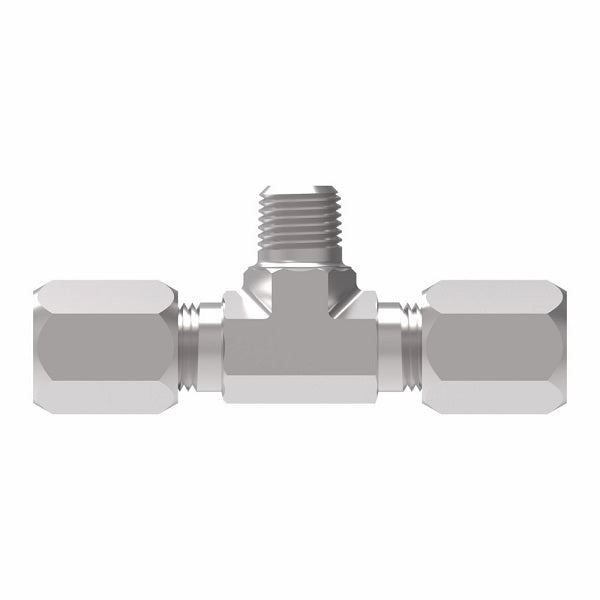

B7605X6 Ermeto by Danfoss | 7000 Series | Male Pipe Branch/Tube Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male NPTF | Steel
B7605X6 Ermeto by Danfoss | 7000 Series | Male Pipe Branch/Tube Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male NPTF | Steel
B7605X6 Ermeto by Danfoss | 7000 Series | Male Pipe Branch/Tube Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male NPTF | Steel
B7605X6 Ermeto by Danfoss | 7000 Series | Male Pipe Branch/Tube Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male NPTF | Steel

B7605X6 Ermeto by Danfoss | 7000 Series | Male Pipe Branch/Tube Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male NPTF | Steel

$21.84 - $21.84
$21.84
$21.84 - $21.84
$21.84

Ermeto by Danfoss
Male Pipe Branch/Tube Tee
Tube x Tube x Male NPTF

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: B7605X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 3/8in Tube Compression, 1/4in Male NPTF, Some Ends Match
Material(s): Steel
Specifications:
  • Ref. SAE No. 080425
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Male Pipe Thread D D1 M N Across
Flats
7605X4 B7605X4 1/4" 1/8" 0.203" 0.188" 0.89" 0.79" 7/16"
7605X4X4X4 B7605X4X4X4 1/4" 1/4" 0.203" 0.281" 1.03" 1.09" 9/16"
7605X6 B7605X6 3/8" 1/4" 0.281" 0.281" 1.05" 1.09" 9/16"
7605X8 B7605X8 1/2" 3/8" 0.422" 0.406" 1.25" 1.22" 3/4"
7605X8X8X8 B7605X8X8X8 1/2" 1/2" 0.422" 0.531" 1.35" 1.47" 7/8"
7605X10 B7605X10 5/8" 1/2" 0.500" 0.531" 1.42" 1.47" 7/8"
7605X12 B7605X12 3/4" 3/4" 0.656" 0.719" 1.58" 1.59" 1-1/16"
7605X16 B7605X16 1" 1" 0.875" 0.938" 1.73" 1.97" 1-5/16"
