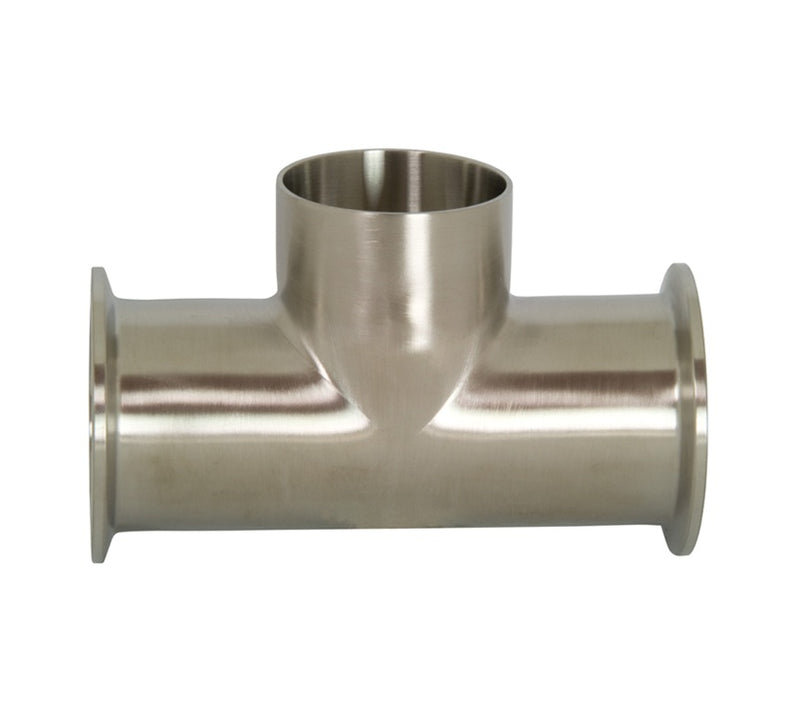

B7MMW-G150 Dixon Valve 304 Stainless Steel Sanitary Polished Clamp Run x Weld Branch Tee (#7 Finish) - 1-1/2" Tube OD

B7MMW-G150 Dixon Valve 304 Stainless Steel Sanitary Polished Clamp Run x Weld Branch Tee (#7 Finish) - 1-1/2" Tube OD

Save $76.03 Save $76.03
$190.07
$190.07 - $190.07
$190.07
$114.04
$114.04 - $114.04
$114.04

Dixon Sanitary
Polished Clamp Run x Weld Branch Tee

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B7MMW-G150 Dixon
Shape (Orientation): Tee
Material(s): 304 Stainless Steel
Special Properties: Polished
Features:
  • 3A sanitary finish ID and OD.
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Wall Thickness A B OD ID
B7MMW-G100 - 1" 0.065" 3.25" 1.13" 1.00" 0.87"
B7MMW-G150 B7MMW-R150 1-1/2" 0.065" 4.31" 1.66" 1.50" 1.37"
B7MMW-G200 B7MMW-R200 2" 0.065" 5.12" 2.06" 2.00" 1.87"
B7MMW-G250 - 2-1/2" 0.065" 5.69" 2.34" 2.50" 2.37"
B7MMW-G300 B7MMW-R300 3" 0.065" 6.19" 2.59" 3.00" 2.87"
B7MMW-G400 - 4" 0.083" 8.13" 3.44" 4.00" 3.83"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
