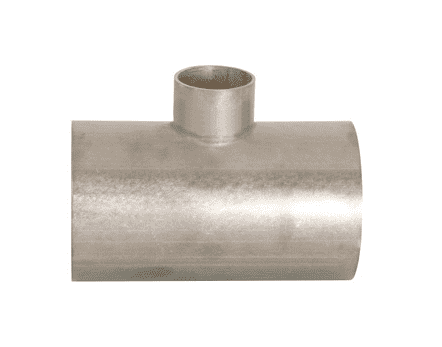

B7RWWW-G200150U Dixon 304 Stainless Steel Sanitary Unpolished Reducing Weld Tee - 2" x 1-1/2" Tube OD

B7RWWW-G200150U Dixon Valve 304 Stainless Steel Sanitary Unpolished Reducing Weld Tee - 2" x 1-1/2" Tube OD

Save $10.27 Save $10.27
$25.67
$25.67 - $25.67
$25.67
$15.40
$15.40 - $15.40
$15.40

Dixon Sanitary Fittings Sanitary Unpolished Weld Tee - Unpolished Reducing Weld Tee - 304 Stainless Steel
Specifications for Variant SKU: B7RWWW-G200150U Dixon
Shape (Orientation): Tee
Ends Configuration: 2in Weld End, 1-1/2in Weld End
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Features:
  • Finish: Unpolished
Part Number Tube OD Dimensions
Wall Thickness Weight (Lbs.)
A B C D
B7RWWW-G150100U 1-1/2" x 1" 3.312" 1.375" 1.500" 1.000" .065" 0.3250
B7RWWW-G200100U 2" x 1" 4.124" 1.625" 2.000" 1.000" .065" 0.5000
B7RWWW-G200150U 2" x 1-1/2" 4.124" 1.906" 2.000" 1.500" .065" 0.5115
B7RWWW-G250150U 2-1/2" x 1-1/2" 4.688" 2.156" 2.500" 1.500" .065" 0.8650
B7RWWW-G250200U 2-1/2" x 2" 4.688" 2.312" 2.500" 2.000" .065" 0.7050
B7RWWW-G300100U 3" x 1" - - - - - 1.5400
B7RWWW-G300150U 3" x 1-1/2" 5.188" 2.406" 3.000" 1.500" .065" 0.8680
B7RWWW-G300200U 3" x 2" 5.188" 2.562" 3.000" 2.000" .065" 2.4440
B7RWWW-G300250U 3" x 2-1/2" 5.190" 2.590" - - .065" 1.1345
B7RWWW-G400150U 4" x 1-1/2" 6.880" 2.910" - - .083" 2.0805
B7RWWW-G400200U 4" x 2" 6.876" 3.062" 4.000" 2.000" .083" 2.3700
B7RWWW-G400250U 4" x 2-1/2" 6.880" 3.090" - - .083" 2.2550
B7RWWW-G400300U 4" x 3" 6.876" 3.094" 4.000" 3.000" .083" 2.1100
B7RWWW-G600200U 6" x 2" 11.250" 4.500" - - - 6.6100
B7RWWW-G600400U 6" x 4" 11.250" 5.130" - - - 6.5100
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
