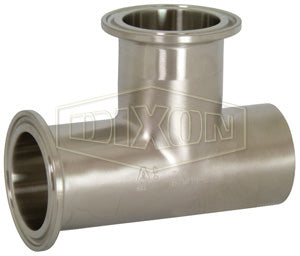

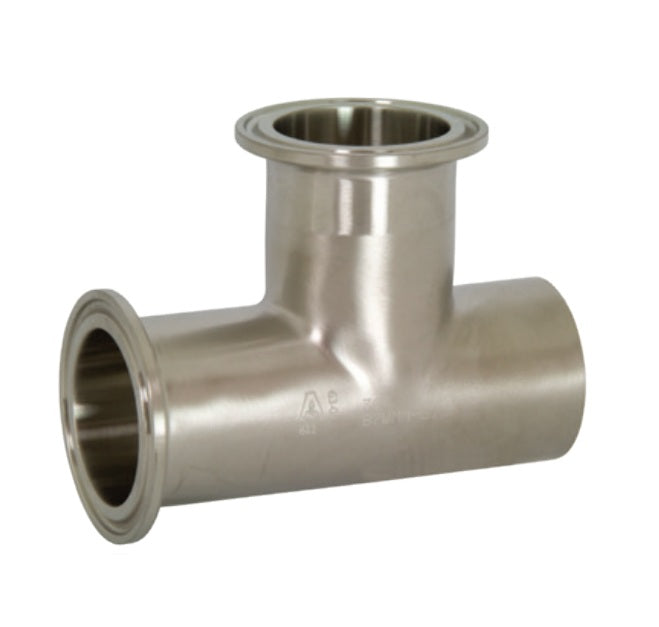

B7WMM-G100 Dixon Valve 304 Stainless Steel Sanitary Polished Weld x Clamp Run x Clamp Branch Tee - 1" Tube OD

Name: B7WMM-G100 Dixon Valve 304 Stainless Steel Sanitary Polished Weld x Clamp Run x Clamp Branch Tee - 1" Tube OD
Brand: Dixon
SKU: B7WMM-G100 Dixon
Price: 109.92 USD
Availability: InStock

Save $73.28

$183.20

$183.20 - $183.20

$183.20

$109.92

$109.92 - $109.92

$109.92

Dixon Sanitary Fittings
Polished Weld x Clamp Run x Clamp Branch Tee

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

Specifications for Variant SKU: B7WMM-G100 Dixon
Shape (Orientation):	Tee
Material(s):	304 Stainless Steel
Special Properties:	Polished

Features:
3A sanitary finish ID and OD.


304 Stainless Steel Part Number	316L Stainless Steel Part Number	Tube OD	Wall Thickness	A	B
B7WMM-G100	B7WMM-R100	1"	0.065"	2.750"	1.625"
B7WMM-G150	B7WMM-R150	1-1/2"	0.065"	3.812"	2.156"
B7WMM-G200	B7WMM-R200	2"	0.065"	4.624"	2.562"
B7WMM-G250	-	2-1/2"	0.065"	5.188"	2.844"
B7WMM-G300	-	3"	0.065"	5.688"	3.094"
B7WMM-G400	-	4"	0.083"	7.500"	4.063"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
