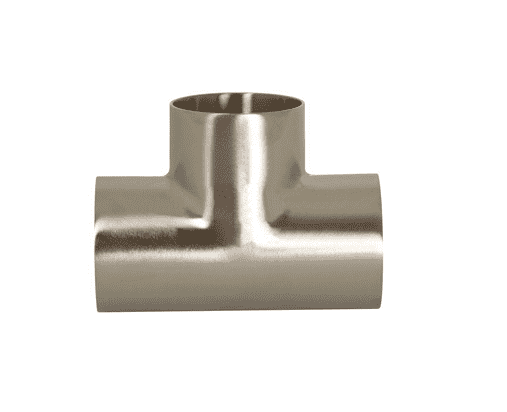

B7WWW-G300P Dixon 304 Stainless Steel Sanitary Polished Short Weld Tee - 3" Tube OD

B7WWW-G300P Dixon Valve 304 Stainless Steel Sanitary Polished Short Weld Tee - 3" Tube OD

Save $6.66 Save $6.66
$31.69
$31.69 - $31.69
$31.69
$25.03
$25.03 - $25.03
$25.03

Dixon Sanitary Polished Weld Tees - Polished Short Weld Tees - 304 Stainless Steel
Specifications for Variant SKU: B7WWW-G300P Dixon
Shape (Orientation): Tee
Ends Configuration: 3in Weld End
Material(s): 304 Stainless Steel
Special Properties: Polished
Features:
  • 3A sanitary finish ID and OD
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Nominal
Wall		 Weight
(Lbs.)
A B
B7WWW-G100P 1" 2.250" 1.125" .065" 0.1500
B7WWW-G150P 1-1/2" 3.312" 1.656" .065" 0.3000
B7WWW-G200P 2" 4.124" 2.062" .065" 0.5000
B7WWW-G250P 2-1/2" 4.688" 2.344" .065" 0.7200
B7WWW-G300P 3" 5.188" 2.594" .065" 0.9600
B7WWW-G400P 4" 6.876" 3.438" .083" 2.2200
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
