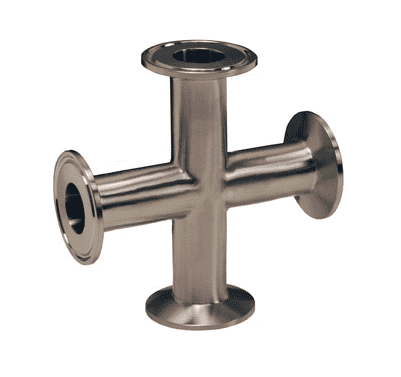

B9MP-G250 Dixon Valve 304 Stainless Steel Sanitary Clamp Cross - 2-1/2" Tube OD

B9MP-G250 Dixon Valve 304 Stainless Steel Sanitary Clamp Cross - 2-1/2" Tube OD

Save $69.93 Save $69.93
$174.82
$174.82 - $174.82
$174.82
$104.89
$104.89 - $104.89
$104.89

Dixon Sanitary Fittings Sanitary Clamp Cross

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B9MP-G250 Dixon
Shape (Orientation): Cross
Ends Configuration: 2-1/2in Sanitary Clamp End, 2-1/2in Sanitary Clamp End, 2-1/2in Sanitary Clamp End, 2-1/2in Sanitary Clamp End, Some Ends Match
Material(s): 304 Stainless Steel
Features:
  • Finish: Polished
Part Number Tube OD Dimensions
 Weight (Lbs.)
A OD ID
304 Stainless Steel
B9MP-G100 1" 4.75" 1.00" 0.87" 0.9025
B9MP-G150 1-1/2" 5.50" 1.50" 1.37" 0.9200
B9MP-G200 2" 7.00" 2.00" 1.87" 1.5000
B9MP-G250 2-1/2" 7.00" 2.50" 2.37" 1.9250
B9MP-G300 3" 7.50" 3.00" 2.87" 2.1750
B9MP-G400 4" 9.00" 4.00" 3.83" 3.0000
B9MP-G600 6" - - - 5.0000
316L Stainless Steel
B9MP-R100 1" 4.75" 1.00" 0.87" 0.8810
B9MP-R150 1-1/2" 5.50" 1.50" 1.37" 0.9590
B9MP-R200 2" 7.00" 2.00" 1.87" 1.5800
B9MP-R250 2-1/2" 7.00" 2.50" 2.37" 1.5250
B9MP-R300 3" 7.50" 3.00" 2.87" 2.3050
B9MP-R400 4" 9.00" 4.00" 3.83" 4.4300
