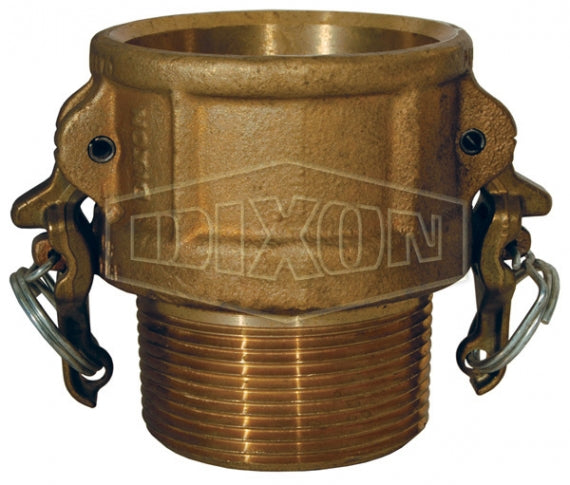

BB100 by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type B | 1" Coupler x 1" Male NPT | Brass

BB100 by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type B | 1" Coupler x 1" Male NPT | Brass

Save $40.73 Save $40.73
$101.82
$101.82 - $101.82
$101.82
$61.09
$61.09 - $61.09
$61.09

Dixon Valve
Boss-Lock Cam & Groove Coupler | Type B | Coupler x Male NPT

Designed for use with liquids.
Specifications for Variant SKU: BB100 Dixon
Brand: Boss-Lock
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 1in Female Cam & Groove, 1in Male NPT
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile Rubber gasket.
  • Boss-Lock cam arms.
  • Supplied with pull-ring safety clips.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • The cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms providing a positive locking action.
  • The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more inserting clips or dangling lanyards, just a twist and it's locked, giving you a low profile positive locking action.
Safety Note:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Brass
Part Number		 Plated
Malleable Iron
Part Number		 316 Stainless Steel
Part Number		 Size Max. Operating
Pressure
- - - RB050BL 3/4" x 1/2" 150 PSI
- BB075 - RB075BL 3/4" 250 PSI
AB100 BB100 IB100 RB100BL 1" 250 PSI
AB125 BB125 - RB125BL 1-1/4" 250 PSI
AB150 BB150 - RB150BL 1-1/2" 250 PSI
AB200 BB200 IB200 RB200BL 2" 250 PSI
AB250 BB250 - - 2-1/2" 150 PSI
AB300 BB300 - RB300BL 3" 125 PSI
AB400 BB400 - RB400BL 4" 100 PSI
AB600 - - - 6" 75 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
