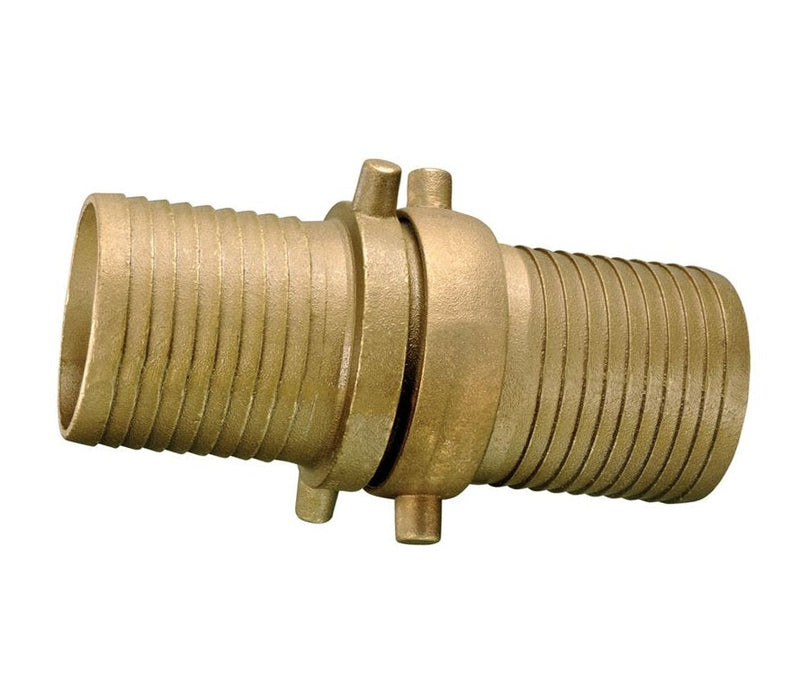

BB150 by Kuriyama | BB Series | Pin Lug Coupling | Complete Set | NPSM Threads | 1-1/2" Hose Barb x 1-1/2" Hose Barb | Brass

BB150 by Kuriyama | BB Series | Pin Lug Coupling | Complete Set | NPSM Threads | 1-1/2" Hose Barb x 1-1/2" Hose Barb | Brass

Save $12.31 Save $12.31
$47.94
$47.94 - $47.94
$47.94
$35.63
$35.63 - $35.63
$35.63

Kuriyama of America Inc.
BB Series | Pin Lug Hose Shank Coupling | Complete Set | NPSM Threads | Hose Barb x Hose Barb | Brass

Versatile threaded hose connectors designed for suction and discharge applications.
Specifications for Variant SKU: BB150 Kuriyama
Series: BB Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Hose Barb, 1-1/2in Hose Barb, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: ASTM B584

What are the Features?

  • Versatile threaded hose connectors designed for suction and discharge applications.
  • Male ends supplied with NPSM threads (National Pipe Straight Mechanical).
  • Cylindrical studs or “pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.

What are the Materials?

  • ASTM B584 Grade C85700 brass alloy.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
BB150 1-1/2" 75 PSI 1.17 lbs
BB200 2" 75 PSI 1.98 lbs
BB300 3" 50 PSI 5.00 lbs
BB400 4" 50 PSI 9.38 lbs
