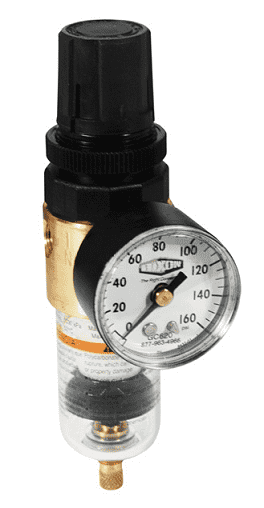

BB3-01AG Dixon Wilkerson 1/8" Miniature Filter / Regulator with Transparent Bowl and Guard - Automatic Drain - 13 SCFM

BB3-01AG Dixon Valve Wilkerson 1/8" Miniature Filter / Regulator with Transparent Bowl and Guard - Automatic Drain - 13 SCFM

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Wilkerson Miniature Filter / Regulators On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.
Specifications for Variant SKU: BB3-01AG Dixon
Features:
  • 2-125 PSI adjusting range.
  • 5 micron element.
  • .5 oz. bowl.
  • Self-relieving.
  • Supplied with a GC620 gauge.
Part Number Size SCFM Drain Type PSI Min/Max Temp Weight (Lbs.)
With Transparent Bowl and Guard
BB3-01AG 1/8" 13 Automatic Drain 125 (8.50 bar) 40 deg. F/ 125 deg. F (4.44 deg. C / 51.67 deg. C) 0.7880
BB3-02AG 1/4" 16 Automatic Drain 125 (8.50 bar) 40 deg. F/ 125 deg. F (4.44 deg. C / 51.67 deg. C) 0.8000
BB3-01MG 1/8" 13 Manual Drain 125 (8.50 bar) 40 deg. F/ 125 deg. F (4.44 deg. C / 51.67 deg. C) 0.7880
BB3-02MG 1/4" 16 Manual Drain 125 (8.50 bar) 40 deg. F/ 125 deg. F (4.44 deg. C / 51.67 deg. C) 0.8000
With Metal Bowl
BB3-01AGMB 1/8" 13 Automatic Drain 300 (20.41 bar) 40 deg. F/ 125 deg. F (4.44 deg. C / 51.67 deg. C) 0.9750
BB3-02AGMB 1/4" 16 Automatic Drain 300 (20.41 bar) 40 deg. F/ 125 deg. F (4.44 deg. C / 51.67 deg. C) 0.9750
BB3-01MGMB 1/8" 13 Manual Drain 300 (20.41 bar) 40 deg. F/ 125 deg. F (4.44 deg. C / 51.67 deg. C) 0.9750
BB3-02MGMB 1/4" 16 Manual Drain 300 (20.41 bar) 40 deg. F/ 125 deg. F (4.44 deg. C / 51.67 deg. C) 0.9750
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
