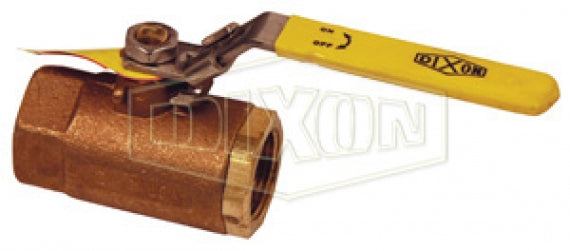

BBV100LV by Dixon Valve | Safety Vented Ball Valve | Standard Port | 1" Female NPT x 1" Female NPT | Bronze

Name: BBV100LV by Dixon Valve | Safety Vented Ball Valve | Standard Port | 1" Female NPT x 1" Female NPT | Bronze
Brand: Dixon
SKU: BBV100LV Dixon
Price: 97.91 USD
Availability: InStock

Save $1.05

$98.96

$98.96 - $98.96

$98.96

$97.91

$97.91 - $97.91

$97.91

Dixon Valve & Coupling
Safety Vented Ball Valve | Bronze

For air service only.

Quantity

Specifications for Variant SKU: BBV100LV Dixon
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	Bronze

Features:
Blow-out proof stem design. Adjustable packing gland. Vent downstream air in accordance with OSHA regulation 1910.147 for pneumatic systems.
Materials:
Body: Bronze. Chromium plated ball. RTFE seats and stuffing box ring.
Specifications:
Pressure rating: 0-125 PSI.

Part Number	Female NPT x Female NPT	Port
BBV25LV	1/4"	Full
BBV38LV	3/8"	Full
BBV50LV	1/2"	Full
BBV75LV	3/4"	Standard
BBV100LV	1"	Standard
BBV125LV	1-1/4"	Standard
BBV150LV	1-1/2"	Standard
BBV200LV	2"	Standard

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
