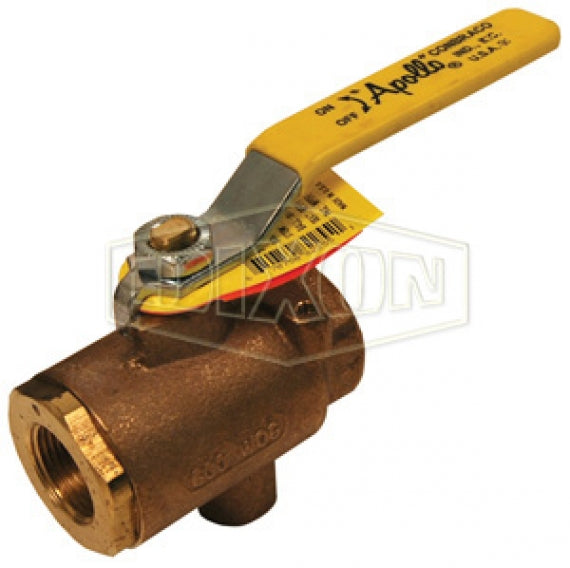

BBV100VT by Dixon Valve | Ball Valve with NPT Tap for Drain | Full Port | 1" Female NPT x 1" Female NPT | Bronze

BBV100VT by Dixon Valve | Ball Valve with NPT Tap for Drain | Full Port | 1" Female NPT x 1" Female NPT | Bronze

Save $106.58 Save $106.58
$266.45
$266.45 - $266.45
$266.45
$159.87
$159.87 - $159.87
$159.87

Dixon Valve & Coupling
Ball Valve with NPT Tap for Drain | Bronze

Recommended for water and air service.
Specifications for Variant SKU: BBV100VT Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Bronze
Features:
  • Blow-out proof stem.
  • Adjustable packing gland.
  • Auto-drain / auto-vent.
  • 1/4" NPT tapped port provides additional options such as an air venting elbow or noise muffler.
  • Vent downstream air in accordance with OSHA regulations for pneumatic systems.
Materials:
  • Body: Bronze.
  • RTFE seats and stuffing box ring.
  • Chromium plated ball.
Specifications:
  • Pressure rating: 125 PSI CWP.
Part Number Female NPT x Female NPT Port
BBV25VT 1/4" Full
BBV38VT 3/8" Full
BBV50VT 1/2" Full
BBV75VT 3/4" Full
BBV100VT 1" Full
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
