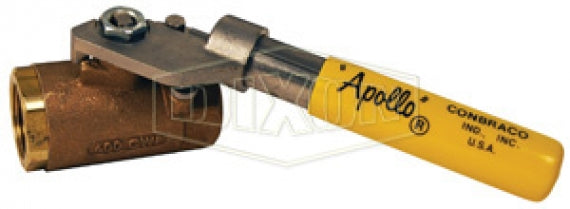

BBV150SR by Dixon Valve | "Deadman" Spring Return Handle Ball Valve | Standard Port | 1-1/2" Female NPT x 1-1/2" Female NPT | Brass

BBV150SR by Dixon Valve | "Deadman" Spring Return Handle Ball Valve | Standard Port | 1-1/2" Female NPT x 1-1/2" Female NPT | Brass

Save $325.50 Save $325.50
$813.75
$813.75 - $813.75
$813.75
$488.25
$488.25 - $488.25
$488.25

Dixon Valve & Coupling
"Deadman" Spring Return Handle Ball Valve | Brass
Specifications for Variant SKU: BBV150SR Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • Blow-out proof stem design.
  • Adjustable packing gland.
  • Spring return closes valve when not held open.
Materials:
  • Stainless steel lever.
  • Chromium plated ball.
  • RTFE seats and stuffing box ring.
Specifications:
  • Operating torque approximately three times standard valve torque.
  • Pressure rating: 600 PSI CWP; 150 PSI saturated steam.
  • Vacuum service to 29 inches Hg.
Part Number Female NPT x Female NPT Port
BBV50SR 1/2" Full
BBV75SR 3/4" Standard
BBV100SR 1" Standard
BBV150SR 1-1/2" Standard
BBV200SR 2" Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
