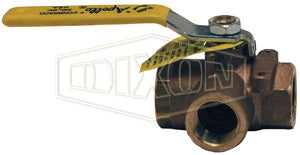

BBV50TW by Dixon Valve | 3-Way Diverting Ball Valve | L Flow | Full Port | 1/2" Female NPT x 1/2" Female NPT x 1/2" Female NPT | Bronze

BBV50TW by Dixon Valve | 3-Way Diverting Ball Valve | L Flow | Full Port | 1/2" Female NPT x 1/2" Female NPT x 1/2" Female NPT | Bronze

Save $48.87 Save $48.87
$122.18
$122.18 - $122.18
$122.18
$73.31
$73.31 - $73.31
$73.31

Dixon Valve & Coupling
3-Way Diverting Ball Valve | L Flow | Bronze
Specifications for Variant SKU: BBV50TW Dixon
Shape (Orientation): Tee
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Bronze
Seal Material(s): RPTFE
Features:
  • Can be used with gasoline and diesel fuel.
  • Blow-out proof stem.
  • Adjustable stem packing.
Materials:
  • Body: Bronze.
  • Chromium-plated ball.
  • RPTFE seats and stuffing box ring.
  • Stainless steel handle and nut with vinyl sleeve.
Specifications:
  • Pressure rating: 400 PSI CWP.
Part Number Female NPT x Female NPT x Female NPT Port
BBV50TW* 1/2" Full
BBV75TW 3/4" Standard
BBV100TW 1" Standard

* Carbon steel handle and nut with vinyl sleeve

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
