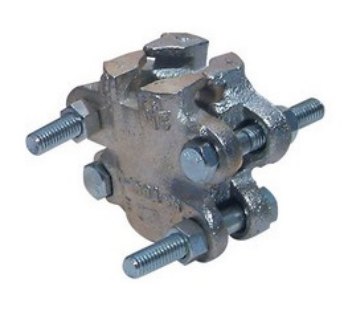

BC4-100B-DP Midland 4 Bolt High Pressure Clamp - 1" Hose ID - Clamp Range: 1.53" to 1.72" - Malleable Iron

BC4-100B-DP by Midland | 4 Bolt High Pressure Clamp | 1" Hose ID | Clamp Range: 1.53" to 1.72" | Malleable Iron

Save $6.39 Save $6.39
$15.98
$15.98 - $15.98
$15.98
$9.59
$9.59 - $9.59
$9.59

Midland Industries
Universal and Ground Joint Coupling - 4 Bolt High Pressure Clamp - Malleable Iron

Inventory @ Manufacturers Warehouse: 67 Units
Specifications for Variant SKU: BC4-100B-DP Midland
Material(s): Malleable Iron
Minimum Clamp I.D.: 1.53
Maximum Clamp I.D.: 1.72
Part Number Hose Size Clamp Range Max Bolt Torque
BC4-100B-DP
 1" 1.53" to 1.72" 21ft Lbs
BC4-125-DP
 1-1/4" 2.06" to 2.25" 40ft Lbs
BC4-200A-DP
 2" 2-11/32" to 2-17/32" 60ft Lbs
BC4-200-DP
 2-1/2" 3-3/32" to 3-7/16" 60ft Lbs
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
