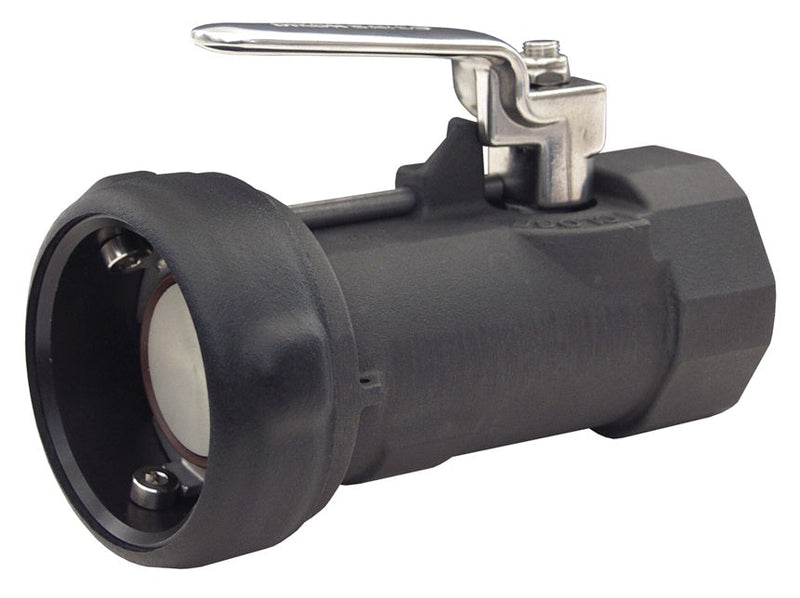

BC62-200 by Dixon Valve | Dry Disconnect | Bayonet Style | 2" Size | Coupler x Female NPT | FKM Seal | Anodized Hard Coat Aluminum

Save $61.02

$593.83

$593.83 - $593.83

$593.83

$532.81

$532.81 - $532.81

$532.81

Dixon Valve
Dry Disconnect | Bayonet Style | Coupler x Female NPT

For the spill-less transfer of petroleum products such as fuel oil, lube oil blending and tank truck delivery.

Quantity

Specifications for Variant SKU: BC62-200 Dixon
Shape (Orientation):	Straight
Ends Configuration:	2in Female Bayonet Style Dry Disconnect, 2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Viton/FKM

Applications:
Bayonet dry disconnect fittings are ideally suited for the spill-less transfer of petroleum products such as fuel oil, lube oil blending, and tank truck delivery. The design of the Bayco bayonet dry disconnect system ensures a spill free connection, fluid cannot flow until couplings are connected together and the valve is opened. The coupling can then not be disconnected until the valve handle is closed.
Compatibility & Interchange Data:
Interchangeable with the Emco Wheaton™ Dry Break™.
Construction:
Swivels have a standard ZERK fitting. Material: Anodized Hard Coat Aluminum
Specifications:
Canadian registration number CRN# OH14055 all provinces. Maximum operating pressure: 85 PSI at 70°F (21°C).

Part Number	Size	Seal Material
BC61-200	2"	Nitrile Rubber
BC62-200	2"	FKM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
