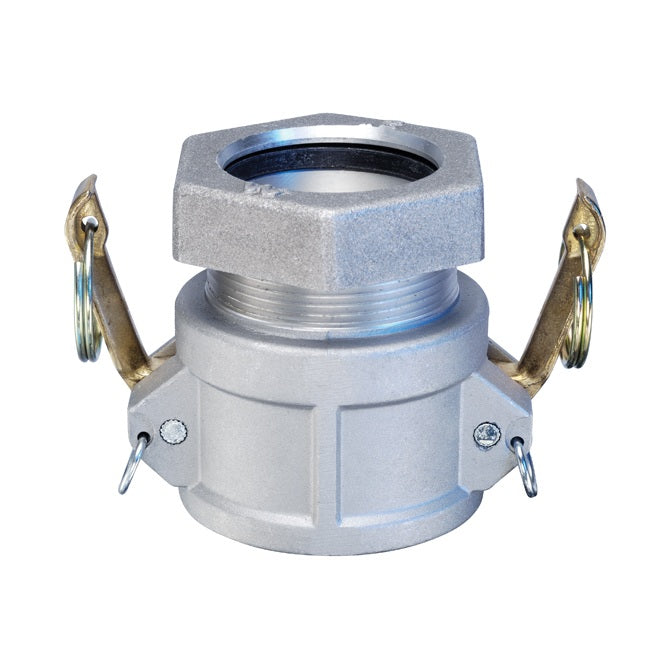

BCAL300 by Kuriyama | BCAL Series | Part B | Cam & Groove Compression Adapter | 3" Coupler x 3" Compression End | Aluminum

BCAL300 by Kuriyama | BCAL Series | Part B | Cam & Groove Compression Adapter | 3" Coupler x 3" Compression End | Aluminum

Save $14.37 Save $14.37
$59.56
$59.56 - $59.56
$59.56
$45.19
$45.19 - $45.19
$45.19

Kuriyama of America Inc.
Cam & Groove (Camlock) Compression Adapter | BCAL Series | Part B | Coupler x Compression End | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BCAL300 Kuriyama
Series: BCAL Series
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 3in Tube Compression
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • BCAL Series supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
  • Forged brass handles for BCAL Series.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips for BCAL Series.
  • Buna-N gasket included for BCAL Series.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
BCAL150 1-1/2" 250 PSI B26 Grade 713 0.96 lbs
BCAL200 2" 250 PSI B26 Grade 713 1.16 lbs
BCAL250 2-1/2" 150 PSI B26 Grade 713 1.54 lbs
BCAL300 3" 150 PSI B26 Grade 713 2.08 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
