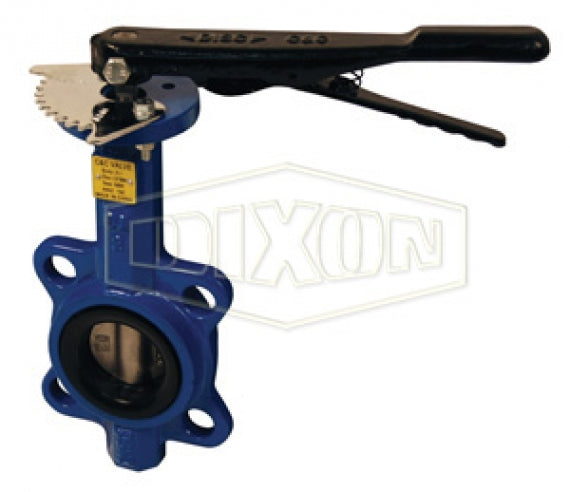

BFVW600 by Dixon Valve | Butterfly Valve | Wafer Style | 6" 150# Flange | Nitrile Rubber Liner | Stainless Disc | Ductile Iron

BFVW600 by Dixon Valve | Butterfly Valve | Wafer Style | 6" 150# Flange | Nitrile Rubber Liner | Stainless Disc | Ductile Iron

Save $153.44 Save $153.44
$472.95
$472.95 - $472.95
$472.95
$319.51
$319.51 - $319.51
$319.51

Dixon Valve & Coupling
Ductile Iron Butterfly Valve | Wafer Style

For use between two 150 lb. flanges.
Specifications for Variant SKU: BFVW600 Dixon
Shape (Orientation): Straight
Ends Configuration: 6in 150# Flange, 6in 150# Flange, Some Ends Match
Material(s): Ductile Iron
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • 10 position trigger grip handle.
Materials:
  • Ductile iron body, ASTM A536.
  • Stainless steel disc, ASTM A351, GR. CF-8M.
  • Nitrile rubber seal and stem seals.
  • PTFE bushing.
  • Stainless steel top and bottom stems.
Specifications:
  • Pressure rating: 200 PSI at ambient temperature 70°F (21°C)
Warning:
  • Not Recommended For Steam Service.
Part Number
Valve with
Nitrile Rubber Liner		 Size
BFVW200 2"
BFVW300 3"
BFVW400 4"
BFVW600 6"
