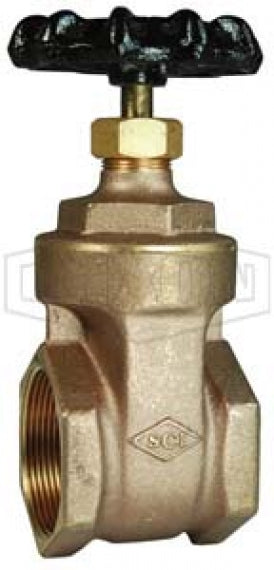

BGV100 by Dixon Valve | Gate Valve | 1" Female NPT x 1" Female NPT | Brass

BGV100 by Dixon Valve | Gate Valve | 1" Female NPT x 1" Female NPT | Brass

Save $25.26 Save $25.26
$63.15
$63.15 - $63.15
$63.15
$37.89
$37.89 - $37.89
$37.89

Dixon Valve & Coupling
Gate Valve
Specifications for Variant SKU: BGV100 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • Threaded bonnet.
  • Integral seat.
  • Adjustable packing nut.
  • Non-rising stem.
  • Solid wedge disc.
Materials:
  • Iron handwheel.
Specifications:
  • Pressure rating: 200 PSI non-shock cold water, oil, gas.
Approvals:
  • 100% factory tested.
Part Number Brass Part Number 316 Stainless Steel Female NPT x Female NPT
BGV25 - 1/4"
BGV38 - 3/8"
BGV50 SSGV50 1/2"
BGV75 SSGV75 3/4"
BGV100 SSGV100 1"
BGV125 SSGV125 1-1/4"
BGV150 SSGV150 1-1/2"
BGV200 SSGV200 2"
BGV250 - 2-1/2"
BGV300 - 3"
BGV400 - 4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
