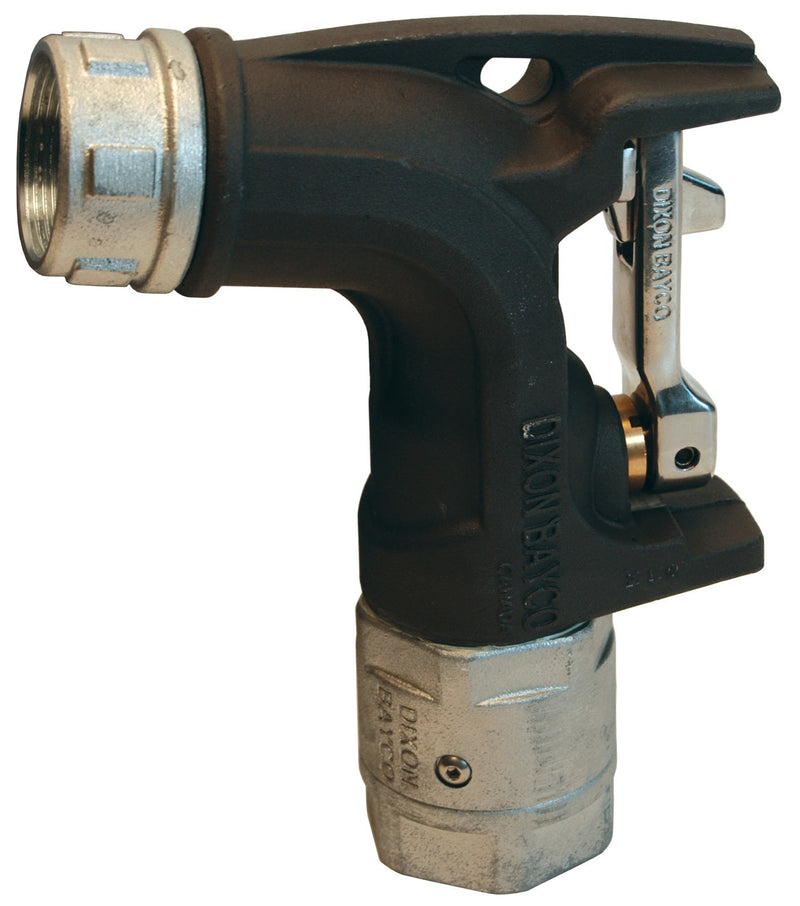

BL072NS by Dixon Valve | Ball Nozzle for Bulk Delivery | 1-1/2" Female NPT Inlet | 1-1/2" Female NPT Outlet | Anodized Aluminum

BL072NS by Dixon Valve | Ball Nozzle for Bulk Delivery | 1-1/2" Female NPT Inlet | 1-1/2" Female NPT Outlet | Anodized Aluminum

Save $54.03 Save $54.03
$525.90
$525.90 - $525.90
$525.90
$471.87
$471.87 - $471.87
$471.87

Dixon Valve
Tank Truck | Ball Nozzle for Bulk Delivery | Female NPT Inlet

Ball nozzles have a very high flow rate and low pressure drop and are ideal for bulk oil and fuel deliveries, they are basically a full port ball valve with an inlet swivel and outlet spout.
Specifications for Variant SKU: BL072NS Dixon
Brand: Bayco
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Female NPT
Material(s): Aluminum, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Black anodized aluminum main body.
  • Polished stainless steel handle and latch.
  • Hardened carbon steel swivel ball race.
  • Bayloy inlet swivel.
  • Through hardened chrome steel ball bearings.
  • Nitrile Rubber and PTFE seals.
  • Acetal valve seat.
  • Stainless steel valve ball.
Features:
  • Full 1" flow path through the ball is computer designed and higher than any known competitors, which results with very low pressure drop permitting higher flow rates at lower pressure, reducing foaming or product backups.
  • Unique swivel design permits leak free service, even at temperatures as low as -40°F at 100 PSI.
  • Rugged construction provides rapid fuel oil transfer/delivery.
  • Heavy duty roller ball swivel with low temperature seals freely rotates.
  • Comes standard with 3 PSI check valve to help ensure residual fuels within the delivery hose and nozzle are contained.
Note:
  • All fuel contains additives, which can vary by fuel brand and season. Please contact Dixon with a list of all additives and we will advise of any known compatibility issues.
Specifications:
  • Manufactured to connect to NPT threaded hose connections.
Part Number Female NPT Inlet Outlet Type
BL062 1-1/4" Swivel Quick Fill Nut
BL064 1-1/2" Swivel Quick Fill Nut
BL066 1-1/4" 1-1/4" Spout
BL068 1-1/2" 1-1/4" Spout
BL072 1-1/2" 1-1/2" Spout
BL066NS 1-1/4" 1-1/4" Female NPT
BL068NS 1-1/2" 1-1/4" Female NPT
BL072NS 1-1/2" 1-1/2" Female NPT
BL920 2" 2" Spout
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
