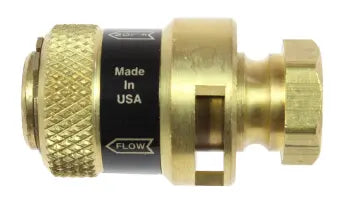

BLSV04F04F by Coilhose | Lockout Slide Valve | 1/4" Female NPT Thread Inlet x 1/4" Female NPT Thread Outlet | Brass

BLSV04F04F by Coilhose | Lockout Slide Valve | 1/4" Female NPT Thread Inlet x 1/4" Female NPT Thread Outlet | Brass

Save $14.13 Save $14.13
$35.33
$35.33 - $35.33
$35.33
$21.20
$21.20 - $21.20
$21.20
Coilhose Pneumatics - Slide Valves & Lockout Slide Valves
Specifications for Variant SKU: BLSV04F04F Coilhose
Shape (Orientation): Straight
Material(s): Brass
Overview:
  • In the open position, Slide Valves allow air to flow through to downstream equipment in the open position. When in the closed position, the valve shuts off the air from the compressor. Air trapped on the load side is then bled off into the atmosphere, preventing the equipment from unexpectedly cycling even though the line is "shut off ".
  • The Lockout Slide valves can be locked in the closed position. This is an especially important safety feature when equipment or machinery is being worked on because it avoids accidental start up, which can cause injury to personnel. The Lockout Slide Valves can accommodate standard lock shank sizes up to .145" (sold separately).

FPTModel MPTModel Description In Port Out Port
BLSV02F02F BLSV02F02M Lockout Slide Valve 1/8" FPT 1/8" NPT
BLSV04F04F BLSV04F04M Lockout Slide Valve 1/4" FPT 1/4" NPT
BLSV06F06F BLSV06F06M Lockout Slide Valve 3/8" FPT 3/8" NPT
BLSV-LCK Lock with two keys n/a n/a
