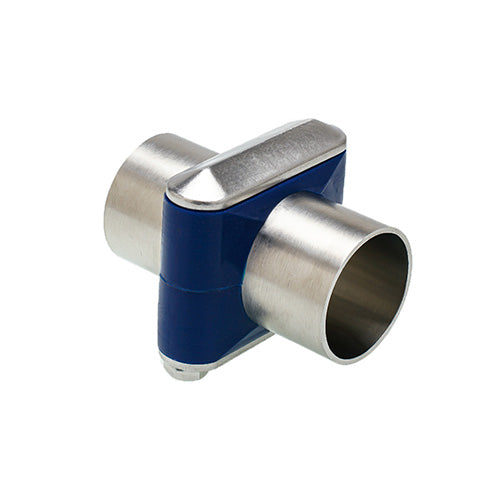

BM-250P-304ZP by ACL Hygienic | Flat Bottom Plate | Zero Puddle Silicone Base Mount w/ Tight Fit | 2-1/2" Pipe Size | Blue | 304 Stainless Steel

Save $20.01

$50.02

$50.02 - $50.02

$50.02

$30.01

$30.01 - $30.01

$30.01

ACL Hygienic
Sanitary, Washdown, and Pipe Hanging Systems:Pipe Hanging Systems - Base Mount

Specifications for Variant SKU: BM-250P-304ZP ZSi-Foster
Shape (Orientation):	Straight
Material(s):	Silicone, 304 Stainless Steel

Applications:	Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semiconductor industries. Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes:	Support Range: 1/4" – 6" Tube and 1/2" – 6" Pipe for Copper and Conduits including PVC Coated Pipe Tight fit Anchors and loose fit Guides are offered
Features:	Reduced OD allows hanger to be encased under the insulation’s jacket ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime There are no exposed threads or openings
Materials:	304 and 316 stainless steels ZERO PUDDLE inserts are FDA grade silicone rubber
Specifications:	Intermittent temperatures from -40F to 320F Continues temperatures from -20F to 302F
Benefits:	Guides loose fit allow the line to freely expand and contract during thermal cycling, preventing undo stress to welds Hanger’s threaded section is elongated, increasing the housing’s elevation adjustment aiding in slope alignment Insulation Envelope “IE”: Reduced OD allows hanger to be buried under the insulation jacket Insulation Thickness: Line’s ODs are Encased Under Insulation 1.0” of insulation : 1/2” Tube (0.5”) to 3” Copper (3.125”) 1.5” of insulation : 3” Pipe (3.5”) to 4” Pipe (4.50”) 2.0” of insulation : 6” Tube (6.0”) to 6” Pipe (6.625”) There are no exposed threads or openings in hardware plates All plates are cleaned polished Hanger threads match MSS 69 rod OD requirement
Base Mount:	Weld mounting rod to bottom plate then to mounting plate or structure

Part Number (anchor/tight fit)	Part Number (guide/loose fit)	Pipe Size	Line OD	H	L	W	CL
BM-050P-304SA	-	1/2"	0.84"	1.7"	1.93"	0.75"	1.44"
BM-075P-304ZP	BM-075P-304ZPG	3/4"	1.05"	1.7"	1.93"	0.75"	1.44"
-	BM-100P-304ZPG	1"	1.315"	2.19"	2.49"	0.75"	1.94"
BM-125P-304ZP	BM-125P-304ZPG	1-1/4"	1.66"	2.69"	2.99"	0.88"	2.44"
BM-150P-304ZP	BM-150P-304ZPG	1-1/2"	1.9"	2.69"	2.99"	0.88"	2.81"
-	BM-200P-304ZPG	2"	2.375"	3.19"	3.36"	0.88"	2.81"
BM-250P-304ZP	BM-250P-304ZPG	2-1/2"	2.875"	3.63"	3.74"	0.88"	3.19"
