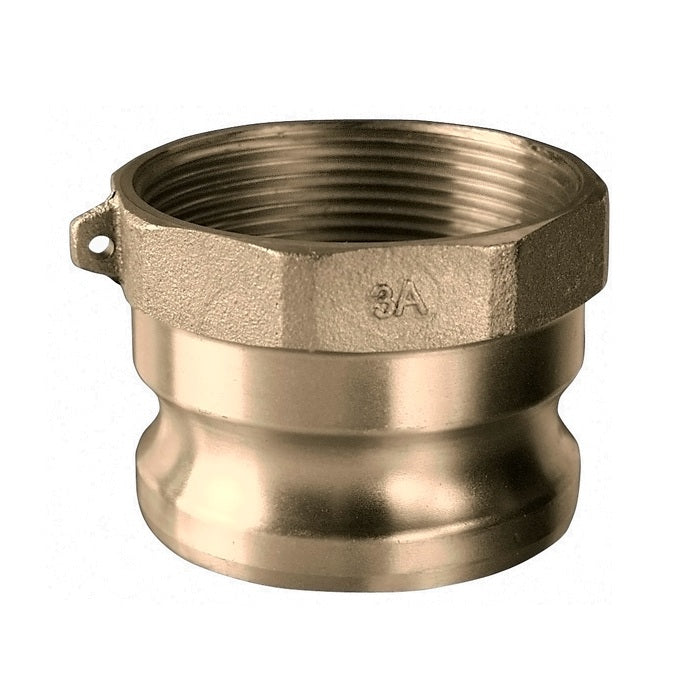

BR-A400 by Kuriyama | BR-A Series | Part A | Cam & Groove Adapter | 4" Adapter x 4" Female NPT | Brass

Save $22.53

$138.63

$138.63 - $138.63

$138.63

$116.10

$116.10 - $116.10

$116.10

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BR-A Series | Part A | Adapter x Female NPT | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: BR-A400 Kuriyama
Series:	BR-A Series
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	4in Male Cam & Groove, 4in Female NPT
Material(s):	Brass

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Highly resistant to damage and corrosion.
Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.

What are the Materials?

ASTM brass alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
BR-A050	1/2"	250 PSI	B584 C85700	0.15 lbs
BR-A075	3/4"	250 PSI	B584 C85700	0.24 lbs
BR-A100	1"	250 PSI	B584 C85700	0.34 lbs
BR-A125	1-1/4"	250 PSI	B584 C85700	0.66 lbs
BR-A150	1-1/2"	250 PSI	B584 C85700	0.73 lbs
BR-A200	2"	250 PSI	B584 C85700	0.86 lbs
BR-A250	2-1/2"	150 PSI	B584 C85700	1.61 lbs
BR-A300	3"	150 PSI	B584 C85700	1.72 lbs
BR-A400	4"	150 PSI	B584 C85700	3.41 lbs
BR-A500	5"	75 PSI	B584 C85700	4.85 lbs
BR-A600	6"	75 PSI	B584 C85700	7.27 lbs
