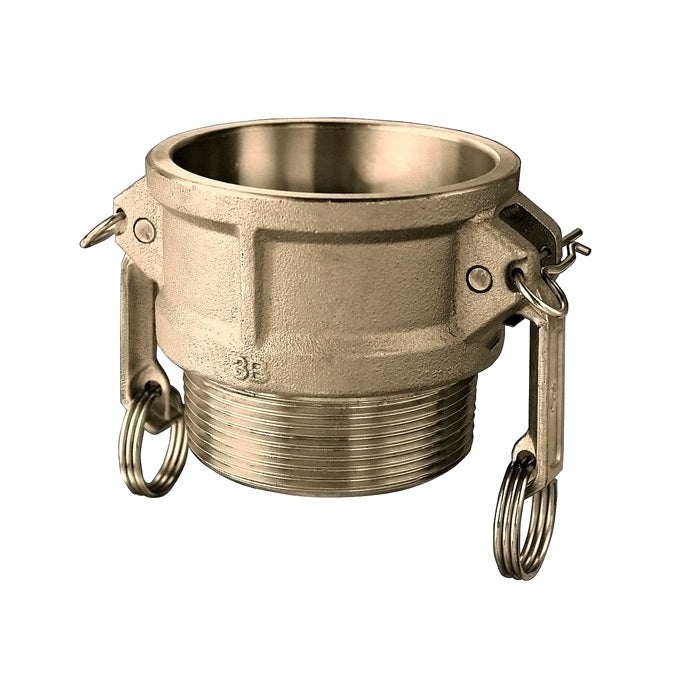

BR-B125 by Kuriyama | BR-B Series | Part B | Cam & Groove Adapter | 1-1/4" Adapter x 1-1/4" Male NPT | Brass

BR-B125 by Kuriyama | BR-B Series | Part B | Cam & Groove Adapter | 1-1/4" Adapter x 1-1/4" Male NPT | Brass

Save $12.42 Save $12.42
$48.90
$48.90 - $48.90
$48.90
$36.48
$36.48 - $36.48
$36.48

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BR-B Series | Part B | Adapter x Male NPT | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BR-B125 Kuriyama
Series: BR-B Series
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 1-1/4in Female Cam & Groove, 1-1/4in Male NPT
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Highly resistant to damage and corrosion.
  • Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.
  • Supplied with forged brass handles which results in less wear on connecting parts.
  • 8" & 10" sizes supplied with four brass handles.

What are the Materials?

  • ASTM brass alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • 304 stainless steel handle pins and pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
BR-B050 1/2" 250 PSI B584 C85700 0.36 lbs
BR-B075 3/4" 250 PSI B584 C85700 0.44 lbs
BR-B100 1" 250 PSI B584 C85700 0.66 lbs
BR-B125 1-1/4" 250 PSI B584 C85700 1.19 lbs
BR-B150 1-1/2" 250 PSI B584 C85700 1.21 lbs
BR-B200 2" 250 PSI B584 C85700 1.39 lbs
BR-B250 2-1/2" 150 PSI B584 C85700 1.87 lbs
BR-B300 3" 150 PSI B584 C85700 3.36 lbs
BR-B400 4" 150 PSI B584 C85700 4.19 lbs
BR-B500 5" 75 PSI B584 C85700 5.18 lbs
BR-B600 6" 75 PSI B584 C85700 8.25 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
