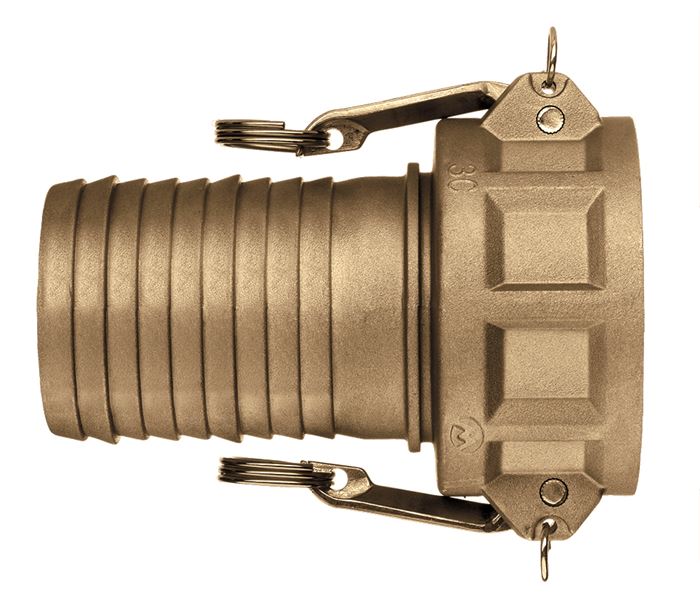

BR-C500 by Kuriyama | BR-C Series | Part C | Cam & Groove Fitting | 5" Coupler x 5" Hose Barb | Brass

Save $44.37

$305.81

$305.81 - $305.81

$305.81

$261.44

$261.44 - $261.44

$261.44

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | BR-C Series | Part C | Coupler x Hose Barb | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: BR-C500 Kuriyama
Series:	BR-C Series
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	5in Female Cam & Groove, 5in Hose Barb
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Highly resistant to damage and corrosion.
Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Tri-Couple™ design available in 1-1/2", 2", 3", 4" sizes.
Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.
Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

ASTM brass alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Forged brass handles.
304 stainless steel handle pins and pull rings.
Zinc-plated carbon steel safety clips.
Buna-N gasket included.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
BR-C050	1/2"	250 PSI	B584 C85700	0.35 lbs
BR-C075	3/4"	250 PSI	B584 C85700	0.53 lbs
BR-A100	1"	250 PSI	B584 C85700	0.81 lbs
BR-C125	1-1/4"	250 PSI	B584 C85700	1.23 lbs
BR-C150*	1-1/2"	250 PSI	B584 C85700	1.32 lbs
BR-C200*	2"	250 PSI	B584 C85700	1.72 lbs
BR-C250	2-1/2"	150 PSI	B584 C85700	2.42 lbs
BR-C300*	3"	150 PSI	B584 C85700	3.74 lbs
BR-C400*	4"	150 PSI	B584 C85700	5.51 lbs
BR-C500	5"	75 PSI	B584 C85700	7.27 lbs
BR-C600	6"	75 PSI	B584 C85700	13.77 lbs

* Designates Tri-Couple fitting.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
