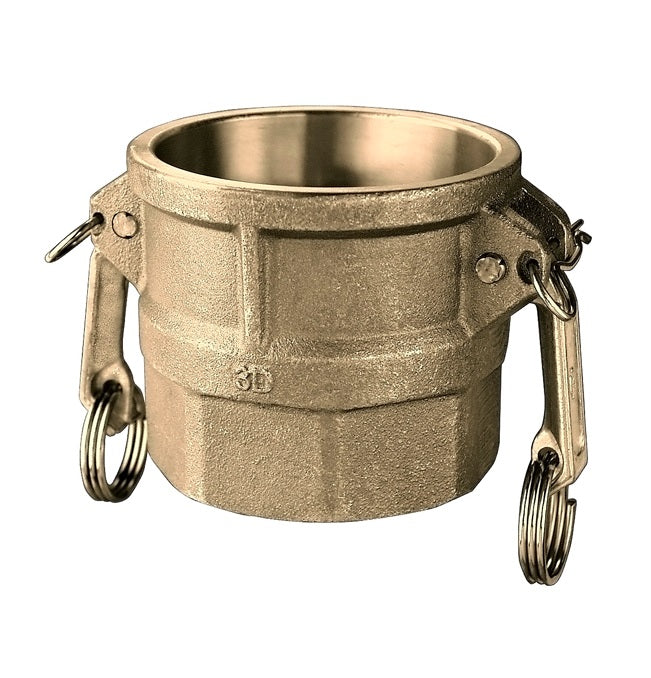

BR-D400 by Kuriyama | BR-D Series | Part D | Cam & Groove Adapter | 4" Coupler x 4" Female NPT | Brass

BR-D400 by Kuriyama | BR-D Series | Part D | Cam & Groove Adapter | 4" Coupler x 4" Female NPT | Brass

Save $28.98 Save $28.98
$179.03
$179.03 - $179.03
$179.03
$150.05
$150.05 - $150.05
$150.05

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BR-D Series | Part D | Coupler x Female NPT Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BR-D400 Kuriyama
Series: BR-D Series
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 4in Female Cam & Groove, 4in Female NPT
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Highly resistant to damage and corrosion.
  • Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.
  • Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM brass alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • 304 stainless steel handle pins and pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
BR-D050 1/2" 250 PSI B584 C85700 0.35 lbs
BR-D075 3/4" 250 PSI B584 C85700 0.51 lbs
BR-D100 1" 250 PSI B584 C85700 0.75 lbs
BR-D125 1-1/4" 250 PSI B584 C85700 1.12 lbs
BR-D150 1-1/2" 250 PSI B584 C85700 1.21 lbs
BR-D200 2" 250 PSI B584 C85700 1.43 lbs
BR-D250 2-1/2" 150 PSI B584 C85700 1.87 lbs
BR-D300 3" 150 PSI B584 C85700 3.13 lbs
BR-D400 4" 150 PSI B584 C85700 5.29 lbs
BR-D500 5" 75 PSI B584 C85700 5.62 lbs
BR-D600 6" 75 PSI B584 C85700 10.95 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
