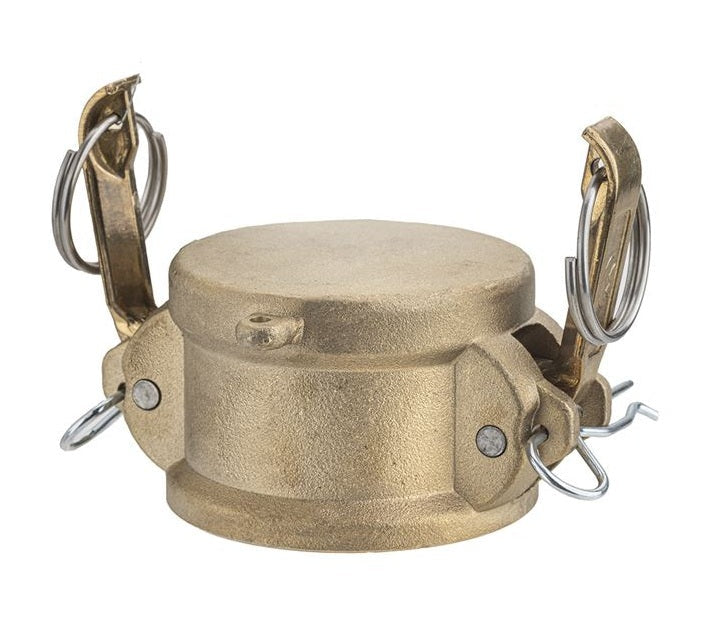

BR-DC200 by Kuriyama | BR-DC Series | Part DC | Cam & Groove Dust Cap | 2" Size | Brass

BR-DC200 by Kuriyama | BR-DC Series | Part DC | Cam & Groove Dust Cap | 2" Size | Brass

Save $14.00 Save $14.00
$54.65
$54.65 - $54.65
$54.65
$40.65
$40.65 - $40.65
$40.65

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Cap | BR-DC Series | Part DC | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BR-DC200 Kuriyama
Series: BR-DC Series
Cam Type: Type DC
Ends Configuration: 2in Female Cam & Groove
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Highly resistant to damage and corrosion.
  • Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Brass alloy specially designed for high tensile strength, impact resistance, and rigidity.
  • Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM brass alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • 304 stainless steel handle pins and pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
BR-DC075 3/4" 250 PSI B584 C85700 0.66 lbs
BR-DC100 1" 250 PSI B584 C85700 0.95 lbs
BR-DC125 1-1/4" 250 PSI B584 C85700 1.04 lbs
BR-DC150 1-1/2" 250 PSI B584 C85700 1.32 lbs
BR-DC200 2" 250 PSI B584 C85700 2.05 lbs
BR-DC250 2-1/2" 150 PSI B584 C85700 2.20 lbs
BR-DC300 3" 150 PSI B584 C85700 3.96 lbs
BR-DC400 4" 150 PSI B584 C85700 4.74 lbs
BR-DC500 5" 75 PSI B584 C85700 5.59 lbs
BR-DC600 6" 75 PSI B584 C85700 10.66 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
