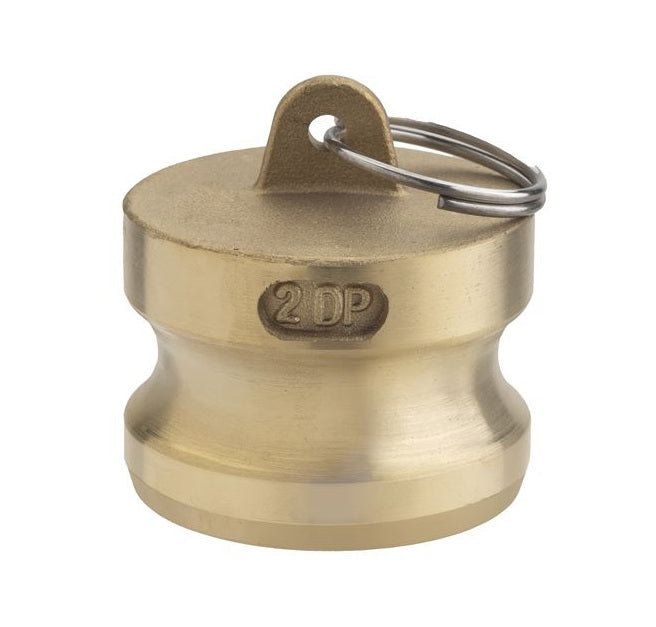

BR-DP200 by Kuriyama | BR-DP Series | Part DP | Cam & Groove Dust Plug | 2" Size | Brass

Save $11.11

$38.96

$38.96 - $38.96

$38.96

$27.85

$27.85 - $27.85

$27.85

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Plug | BR-DP Series | Part DP | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: BR-DP200 Kuriyama
Series:	BR-DP Series
Cam Type:	Type DP
Ends Configuration:	2in Male Cam & Groove
Material(s):	Brass

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Highly resistant to damage and corrosion.
Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Brass alloy specially designed for high tensile strength, impact resistance, and rigidity.

What are the Materials?

ASTM brass alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
BR-DP075	3/4"	250 PSI	B584 C85700	0.22 lbs
BR-DP100	1"	250 PSI	B584 C85700	0.33 lbs
BR-DP125	1-1/4"	250 PSI	B584 C85700	0.46 lbs
BR-DP150	1-1/2"	250 PSI	B584 C85700	0.53 lbs
BR-DP200	2"	250 PSI	B584 C85700	0.99 lbs
BR-DP250	2-1/2"	150 PSI	B584 C85700	1.20 lbs
BR-DP300	3"	150 PSI	B584 C85700	1.65 lbs
BR-DP400	4"	150 PSI	B584 C85700	2.42 lbs
BR-DP500	5"	75 PSI	B584 C85700	3.74 lbs
BR-DP600	6"	75 PSI	B584 C85700	4.74 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
