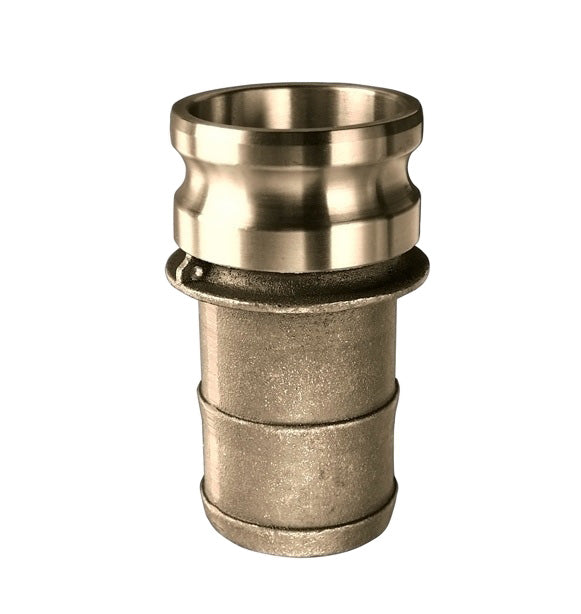

BR-E500 by Kuriyama | BR-E Series | Part E | Cam & Groove Fitting | 5" Adapter x 5" Hose Barb | Brass

BR-E500 by Kuriyama | BR-E Series | Part E | Cam & Groove Fitting | 5" Adapter x 5" Hose Barb | Brass

Save $44.18 Save $44.18
$300.29
$300.29 - $300.29
$300.29
$256.11
$256.11 - $256.11
$256.11

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | BR-E Series | Part E | Adapter x Hose Barb | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BR-E500 Kuriyama
Series: BR-E Series
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 5in Male Cam & Groove, 5in Hose Barb
Material(s): Brass

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Highly resistant to damage and corrosion.
  • Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Tri-Couple™ design available in 1-1/2", 2", 3", 4" sizes.
  • Brass alloy specially designed for high tensile strength, impact resistance, and rigidity.

What are the Materials?

  • ASTM brass alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
BR-E050 1/2" 250 PSI B584 C85700 0.24 lbs
BR-E075 3/4" 250 PSI B584 C85700 0.36 lbs
BR-E100 1" 250 PSI B584 C85700 0.59 lbs
BR-E125 1-1/4" 250 PSI B584 C85700 0.75 lbs
BR-E150* 1-1/2" 250 PSI B584 C85700 1.01 lbs
BR-E200* 2" 250 PSI B584 C85700 1.54 lbs
BR-E250 2-1/2" 150 PSI B584 C85700 2.11 lbs
BR-E300* 3" 150 PSI B584 C85700 3.08 lbs
BR-E400* 4" 150 PSI B584 C85700 4.30 lbs
BR-E500 5" 75 PSI B584 C85700 7.60 lbs
BR-E600 6" 75 PSI B584 C85700 12.33 lbs

* Designates Tri-Couple fitting

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
