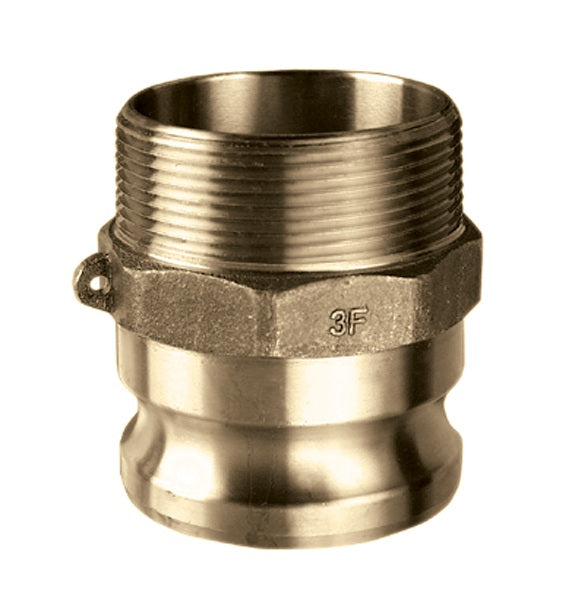

BR-F075 by Kuriyama | BR-F Series | Part F | Cam & Groove Adapter | 3/4" Adapter x 3/4" Male NPT | Brass

BR-F075 by Kuriyama | BR-F Series | Part F | Cam & Groove Adapter | 3/4" Adapter x 3/4" Male NPT | Brass

Save $7.04 Save $7.04
$19.06
$19.06 - $19.06
$19.06
$12.02
$12.02 - $12.02
$12.02

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BR-F Series | Part F | Adapter x Male NPT | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BR-F075 Kuriyama
Series: BR-F Series
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 3/4in Male Cam & Groove, 3/4in Male NPT
Material(s): Brass

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Highly resistant to damage and corrosion.
  • Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Brass alloy specially designed for high tensile strength, impact resistance, and rigidity.

What are the Materials?

  • ASTM brass alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
BR-F050 1/2" 250 PSI B584 C85700 0.22 lbs
BR-F075 3/4" 250 PSI B584 C85700 0.33 lbs
BR-F100 1" 250 PSI B584 C85700 0.53 lbs
BR-F125 1-1/4" 250 PSI B584 C85700 0.66 lbs
BR-F150 1-1/2" 250 PSI B584 C85700 0.88 lbs
BR-F200 2" 250 PSI B584 C85700 1.08 lbs
BR-F250 2-1/2" 150 PSI B584 C85700 1.85 lbs
BR-F300 3" 150 PSI B584 C85700 2.42 lbs
BR-F400 4" 150 PSI B584 C85700 3.74 lbs
BR-F500 5" 75 PSI B584 C85700 4.63 lbs
BR-F600 6" 75 PSI B584 C85700 9.03 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
