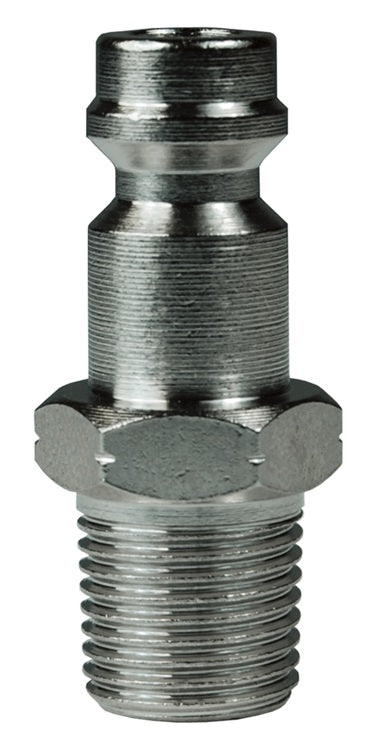

BR1GM2-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/4" Male BSPP x 1/8" 21-Series Interchange | Plug | Brass

Save $0.16

$2.33

$2.33 - $2.33

$2.33

$2.17

$2.17 - $2.17

$2.17

Dixon Valve & Coupling
Pneumatic Coupling: BR-Series 21-Series Interchange Plug (Male Threads)

Quantity

Specifications for Variant SKU: BR1GM2-B-E-7 Dixon
Series:	BR-Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male BR-Series QD Interchange, 1/4in Male BSPP
Material(s):	Brass

Compatibility & Interchange:	Rectus 21KA, Tomco Series SC, CEJN Series 223
Construction:	Machined components are manufactured using solid brass bar stock. Machined components are plated with chrome-over-nickel plating.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

BR-Series \| 21-Series Interchange Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
BR1M1-B-E-7	Plug/Male	1/8"	1/8" - 27 Male NPT	Brass	1.06" (26.9mm)	0.65" (16.5mm)	9/16"	300 PSI	7000 PSI
BR1GM1-B-E-7	Plug/Male	1/8"	1/8" - 28 Male BSPP	Brass	1.06" (26.9mm)	0.65" (16.5mm)	9/16"	300 PSI	7000 PSI
BR1M2-B-E-7	Plug/Male	1/8"	1/4" - 18 Male NPT	Brass	1.20" (30.5mm)	0.72" (18.3mm)	5/8"	300 PSI	7000 PSI
BR1GM2-B-E-7	Plug/Male	1/8"	1/4" - 19 Male BSPP	Brass	1.20" (30.5mm)	0.72" (18.3mm)	5/8"	300 PSI	7000 PSI

BR-Series \| 21-Series Interchange Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
1BRM1-B-7	Socket/Female	1/8"	1/8" - 27 Male NPT	Brass	1.49" (37.8mm)	0.65" (16.5mm)	9/16"	300 PSI	7000 PSI
1BRGM1-B-7	Socket/Female	1/8"	1/8" - 28 Male BSPP	Brass	1.49" (37.8mm)	0.65" (16.5mm)	9/16"	300 PSI	7000 PSI
1BRM2-B-7	Socket/Female	1/8"	1/4" - 18 Male NPT	Brass	1.61" (40.9mm)	0.72" (18.3mm)	5/8"	300 PSI	7000 PSI
1BRGM2-B-7	Socket/Female	1/8"	1/4" - 19 Male BSPP	Brass	1.61" (40.9mm)	0.72" (18.3mm)	5/8"	300 PSI	7000 PSI
