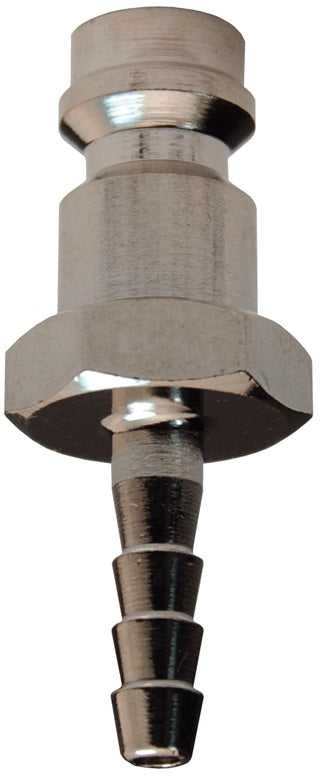

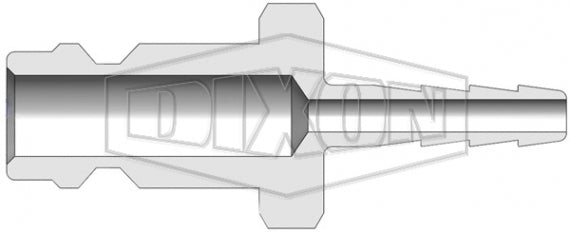

BR1S2.83-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | Hose Barb | 9mm Hose ID x 1/8" 21-Series Interchange | Plug | Brass

Save $2.39

$4.74

$4.74 - $4.74

$4.74

$2.35

$2.35 - $2.35

$2.35

Dixon Valve & Coupling
Pneumatic Coupling: BR-Series 21-Series Interchange Plug (Hose Barb)

Specifications for Variant SKU: BR1S2.83-B-E-7 Dixon
Series:	BR-Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male BR-Series QD Interchange, 9mm Hose Barb
Material(s):	Brass
Compatible with the following Series:	GS Black Multipurpose Air and Water Hose \| GS Red Multipurpose Air and Water Hose

Compatibility & Interchange:	Rectus 21KA, Tomco Series SC, CEJN Series 223
Construction:	Machined components are manufactured using solid brass bar stock. Machined components are plated with chrome-over-nickel plating.
Safety Notes:	Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death. It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

BR-Series \| 21-Series Interchange Plug (Hose Barb)

Part Number	Coupling Type	Body Size	Hose ID	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
BR1S1.25-B-E-7	Plug/Male	1/8"	4mm	Brass	1.26" (32.0mm)	0.35" (8.9mm)	9/16"	300 PSI	7000 PSI
BR1S1.86-B-E-7	Plug/Male	1/8"	6mm	Brass	1.26" (32.0mm)	0.35" (8.9mm)	9/16"	300 PSI	7000 PSI
BR1S2.83-B-E-7	Plug/Male	1/8"	9mm	Brass	1.26" (32.0mm)	0.35" (8.9mm)	9/16"	300 PSI	7000 PSI

BR-Series \| 21-Series Interchange Coupler (Hose Barb)

Part Number	Coupling Type	Body Size	Hose ID	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
1BRS1.25-B-7	Socket/Female	1/8"	4mm	Brass	1.26" (32.0mm)	0.35" (8.9mm)	9/16"	300 PSI	7000 PSI
1BRS1.86-B-7	Socket/Female	1/8"	6mm	Brass	1.26" (32.0mm)	0.35" (8.9mm)	9/16"	300 PSI	7000 PSI
1BRS2.83-B-7	Socket/Female	1/8"	9mm	Brass	1.26" (32.0mm)	0.35" (8.9mm)	9/16"	300 PSI	7000 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
