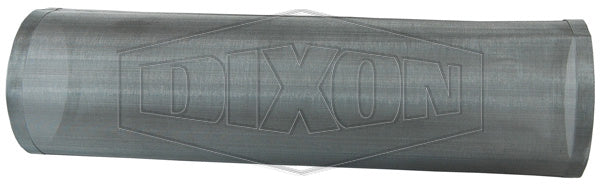

BS40-250-300 Dixon Valve Sanitary 316 Stainless Steel Wire Cloth Mesh Over Screen - 2-1/2" - 3" Size - Short - 381 Micron - 40 Mesh

Name: BS40-250-300 Dixon Valve Sanitary 316 Stainless Steel Wire Cloth Mesh Over Screen - 2-1/2" - 3" Size - Short - 381 Micron - 40 Mesh
Brand: Dixon
SKU: BS40-250-300 Dixon
Price: 71.48 USD
Availability: InStock

Save $5.21

$76.69

$76.69 - $76.69

$76.69

$71.48

$71.48 - $71.48

$71.48

Dixon Sanitary Fittings Sanitary 316 Stainless Steel Wire Cloth Mesh Over Screen

Maximum flow for short units is 125 GPM

Maximum flow for long units is 175 GPM

Quantity

Specifications for Variant SKU: BS40-250-300 Dixon

Note:
Not 3A compatible, not included with base unit

Short Part Number	Long Part Number	Size	Micron Rating	Square Mesh	Space Between Wires	Percent of Open Area
BS20-100-200	BS202-100-200	1" - 2"	864	20	0.034"	46.2
BS20-250-300	BS202-250-300	2-1/2" - 3"	864	20	0.034"	46.2
BS40-100-200	BS402-100-200	1" - 2"	381	40	0.015"	36.0
BS40-250-300	BS402-250-300	2-1/2" - 3"	381	40	0.015"	36.0
BS60-100-200	BS602-100-200	1" - 2"	229	60	0.009"	30.3
BS60-250-300	BS602-250-300	2-1/2" - 3"	229	60	0.009"	30.3
BS80-100-200	BS802-100-200	1" - 2"	178	80	0.007"	31.4
BS80-250-300	BS802-250-300	2-1/2" - 3"	178	80	0.007"	31.4
BS100-100-200	BS1002-100-200	1" - 2"	140	100	0.006"	30.3
BS100-250-300	BS1002-250-300	2-1/2" - 3"	140	100	0.006"	30.3

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
